Littelfuse

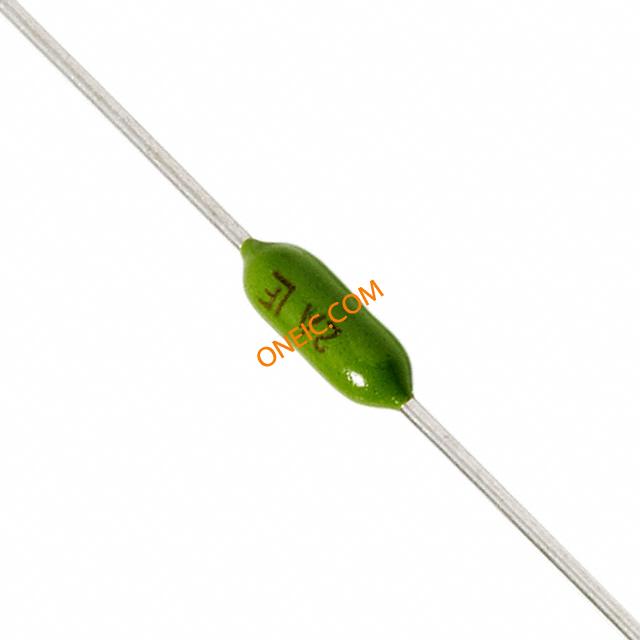

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Fuses with Leads (Through Hole) |
| RoHS | In Transition |
| 产品类型 | PCB Mount Fuse |
| 体风格 | Leaded Fuses |
| 额定电流 | 500 mA |
| 电压额定值AC | 125 V |
| 直流电额定电压 | 125 V |
| 安装风格 | Through Hole |
| 端接类型 | Axial |
| 保险丝类型 | Time Delay / Slow Blow |
| 保险丝大小/组5毫米×20毫米 | PICO II |
| 外形尺寸 | 7.11 mm L x 2.8 mm D |
| 系列 | 472 |
| 类型 | PCB Mount Fuse |
| 表壳直径 | 2.8 mm |
| 表壳长度 | 7.11 mm |
| 指示器型式 | Without Indicator |
| 中断额定值 | 50 Amps |
| 工作温度范围 | - 55 C to + 125 C |
| 封装 | Reel |
| 产品 | Specialty Fuses |
| 电阻 | 0.174 Ohms |
| 工厂包装数量 | 1000 |
| 单位包 | 0 |
| 最小起订量 | 1 |
| 时的断路容量额定电压 | 50A |
| 安装类型 | Through Hole |
| 额定电压 - AC | 125V |
| 认证 | UL |
| 尺寸/尺寸 | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) |
| 工作温度 | -55°C ~ 125°C |
| 标准包装 | 1,000 |
| 额定电压 - DC | 125V |
| 响应时间 | Slow |
| DC抗冷流0.02欧姆 | 0.174 Ohm |
| 熔化I²t | 0.1927 |
| 封装/外壳 | Axial |
| RoHS指令 | Lead free by exemption / RoHS Compliant |
| Voltage Rating VAC | :125V |
| Voltage Rating VDC | :125V |
| Fuse Current | :500mA |
| 断能力 | :50A @ 125VAC/VDC |
| Blow Characteristic | :Time Delay |
| Fuse Case Style | :Axial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85361010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
