Littelfuse

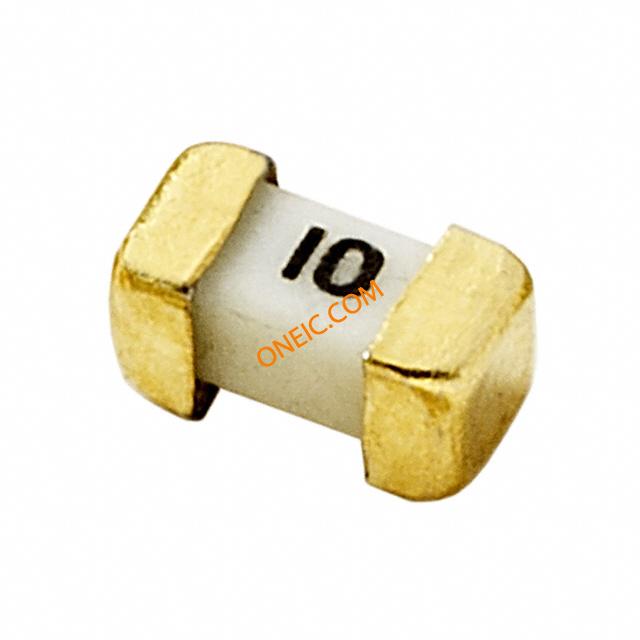

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Surface Mount Fuses |
| RoHS | RoHS Compliant |
| 产品类型 | Surface Mount Fuse |
| 额定电流 | 3.5 A |
| 直流电额定电压 | 75 V |
| 保险丝类型 | Fast Blow |
| 保险丝大小/组5毫米×20毫米 | NANO |

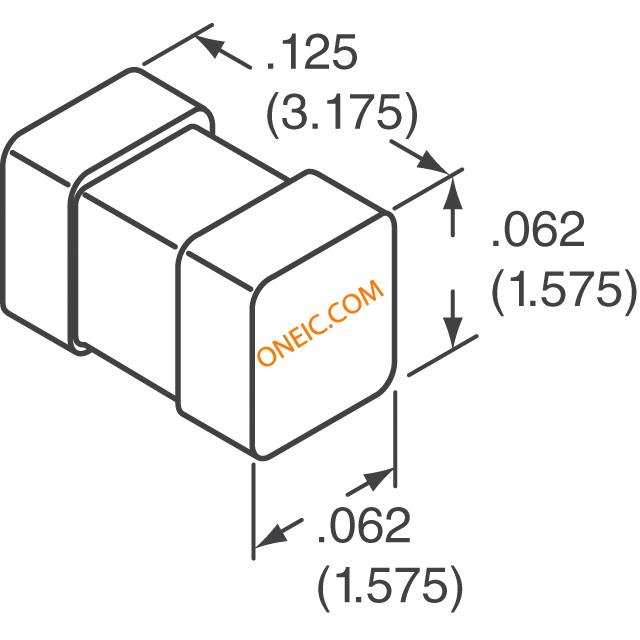

| 外形尺寸 | 3.175 mm L x 1.575 mm W |
| 系列 | 458 |
| 类型 | Nano Surface Mount Inrush Withstand Fuse |
| 表壳厚度 | 1.575 mm |
| 表壳长度 | 3.175 mm |
| 表壳宽度 | 1.575 mm |
| 中断额定值 | 50 Amps |
| 工作温度范围 | - 55 C to + 125 C |
| 封装 | Reel |
| 产品 | Surface Mount Fuses |
| 电阻 | 0.0375 Ohms |
| 工厂包装数量 | 1500 |
| 单位包 | 0 |
| 最小起订量 | 1 |
| 时的断路容量额定电压 | 50A |
| 安装类型 | Surface Mount |
| 额定电压 - AC | 48V |
| 认证 | cULus |
| 尺寸/尺寸 | 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm) |
| 工作温度 | -55°C ~ 125°C |
| 标准包装 | 1,500 |
| 额定电压 - DC | 75V |
| 响应时间 | Fast |
| DC抗冷流0.02欧姆 | 0.0375 Ohm |
| 熔化I²t | 4 |
| 封装/外壳 | 1206 (3216 Metric) |
| RoHS指令 | Lead free by exemption / RoHS Compliant |
| 其他名称 | F2935CT |
| Voltage Rating VAC | :63V |
| Voltage Rating VDC | :63V |
| Fuse Current | :3.5A |
| 断能力 | :50A @ 63VDC |
| Blow Characteristic | :Very Fast Acting |
| Fuse Case Style | :1206 |
| 阀体材质 | :Ceramic |
| Weight (kg) | 0 |
| Tariff No. | 00000000 |
| Voltage Rating V AC | :48V |
| Voltage Rating V DC | :75V |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Category | :UL Recognised |
| 外部深度 | :1.575mm |
| 外宽 | :3.175mm |
| Fuse Type Blowing Characteristic | :Very fast acting |
| MSL | :MSL 1 - Unlimited |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
