Lumex

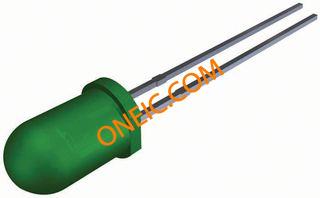

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| 照明颜色 | Green |
| 发光强度 | 30 mcd |
| 波长/色温 | 565 nm |
| 可视角度 | 60 deg |
| 镜头颜色/类型 | Tinted, Diffused |
| LED尺寸 | T-1 3/4 |
| 封装 | Bulk |
| 透镜形状 | Dome |
| 安装风格 | Through Hole |
| 工厂包装数量 | 1000 |
| 电压 - 正向（Vf ）典型值 | 2.2V |
| 安装类型 | Through Hole |
| 透镜样式/尺寸 | Round with Domed Top, 5mm, T-1 3/4 |
| 颜色 | Green |
| Millicandela等级 | 30mcd |
| 波长 - 峰值 | 565nm |
| 标准包装 | 1,000 |
| 电流 - 测试 | 20mA |
| 身高 | 8.60mm |
| 镜头类型 | Diffused, Tinted |
| 封装/外壳 | Radial |
| RoHS指令 | Lead free / RoHS Compliant |
| 正向电流 | 25 mA |
| Bulb Size | :T-1 3/4 (5mm) |
| 指示灯颜色 | :Green |
| Forward Current If | :20mA |
| 正向电压 | :2.2V |
| LED Mounting | :Through Hole |
| Wavelength Typ | :565nm |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.05 |
| Tariff No. | 85414010 |
| LED颜色 | :Green |
| 应用 | Forbacklightingindashboardsandswitches,indicatorandbacklightingintelephoneandfax,indicatorandbacklightforaudioandvideoequipment,indicatorandbacklightforbatterydrivenequipment,smallindicatorforoutdoorapplications,indicator |
| Color,Emitted | Green |
| Color,Lens | Green |
| Current,Forward | 25mA |

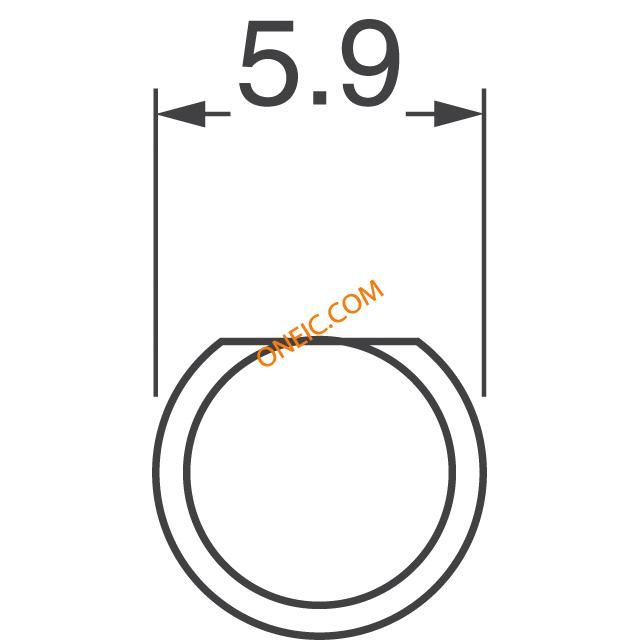

| 直径 | 0.232in. |
| LuminousIntensity | 30mcd |
| PackageType | T1-3/4(5mm) |
| PowerDissipation | 105mW |
| 标准 | ULListed |
| 技术 | GaP |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -40°C |
| Temperature,Soldering | 260°C |
| ViewingAngle | 60° |
| Voltage,Forward | 2.2V |
| Voltage,Reverse | 5V(Min.) |
| Wavelength,Peak | 565nm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
