Lumex

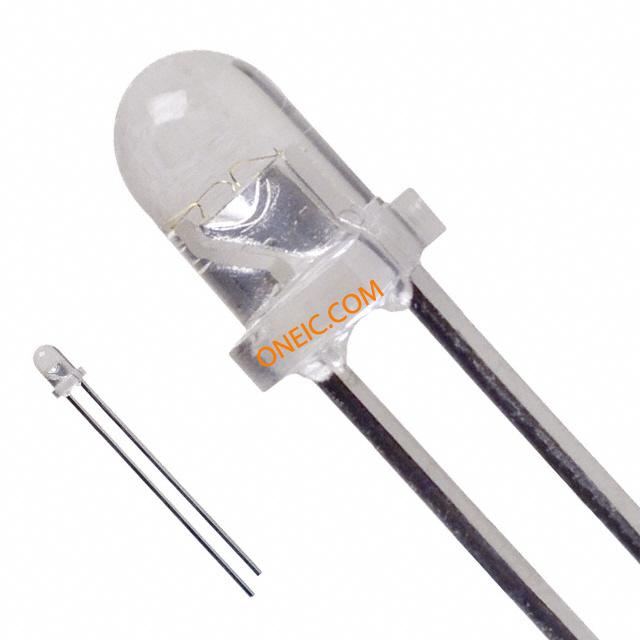

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| 照明颜色 | White |
| 发光强度 | 750 mcd |
| 可视角度 | 20 deg |
| 镜头颜色/类型 | Water Clear |
| 正向电流 | 20 mA |
| 正向电压 | 3.6 V |
| LED尺寸 | T-1 |
| 封装 | Bulk |
| 镜头规格 | 3 mm |
| 透镜形状 | Dome |
| 最高工作温度 | + 80 C |
| 最低工作温度 | - 30 C |
| 安装风格 | Through Hole |
| 工厂包装数量 | 1000 |
| 电压 - 正向（Vf ）典型值 | 3.6V |
| 安装类型 | Through Hole |
| 透镜样式/尺寸 | Round with Domed Top, 3mm, T-1 |
| 颜色 | White, Cool |
| 波长 - 主 | 8600K |
| Millicandela等级 | 750mcd |
| 标准包装 | 1,000 |
| 电流 - 测试 | 20mA |
| 身高 | 5.20mm |
| 镜头类型 | Clear |
| 封装/外壳 | Radial |
| RoHS指令 | Lead free / RoHS Compliant |
| 标准包装 | 1,000 |
| Bulb Size | :T-1 (3mm) |
| 指示灯颜色 | :White |
| Forward Current If | :20mA |
| LED Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :3.5V |
| LED / Lamp Size | :3mm / T-1 |
| LED Type | :Standard |
| Luminous Intensity Typ | :750mcd |
| No. of Pins | :2 |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-30°C |
| 工作温度范围 | :-30°C to +80°C |
| Opto Case Style | :Through Hole |
| Weight (kg) | 0.0001 |
| Tariff No. | 85444920 |
| 封装/外壳 | Radial |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
