Lumex

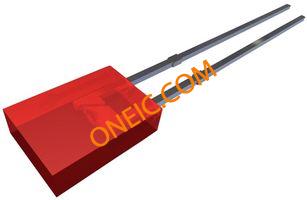

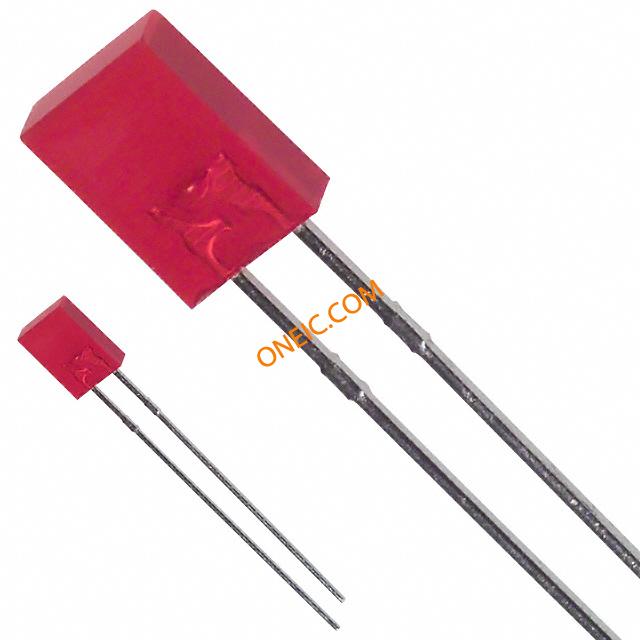

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Standard LEDs - Through Hole |
| RoHS | RoHS Compliant |
| 照明颜色 | Red |
| 发光强度 | 10 mcd |
| 波长/色温 | 635 nm |
| 可视角度 | 110 deg |
| 镜头颜色/类型 | Tinted, Diffused |

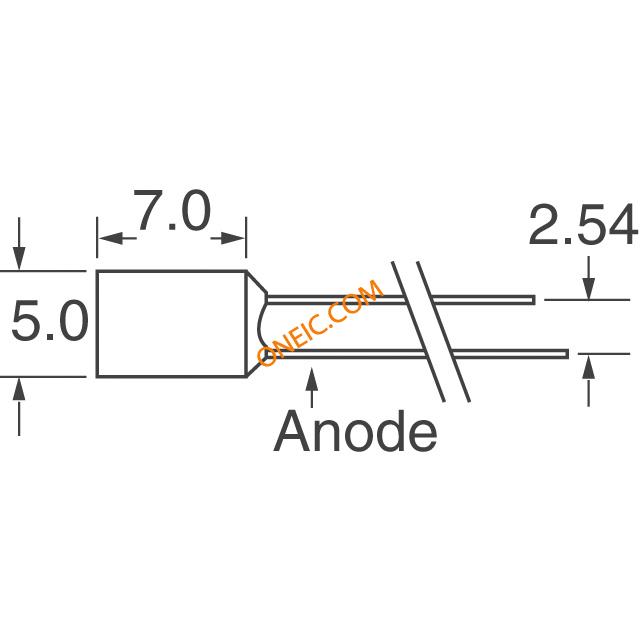

| LED尺寸 | 2.5 mm x 5 mm |
| 封装 | Bulk |
| 镜头规格 | 2.5 mm x 5 mm |
| 透镜形状 | Rectangular |
| 最高工作温度 | + 85 C |
| 最低工作温度 | - 40 C |
| 安装风格 | Through Hole |
| 工厂包装数量 | 1000 |
| 电压 - 正向（Vf ）典型值 | 2V |
| 安装类型 | Through Hole |

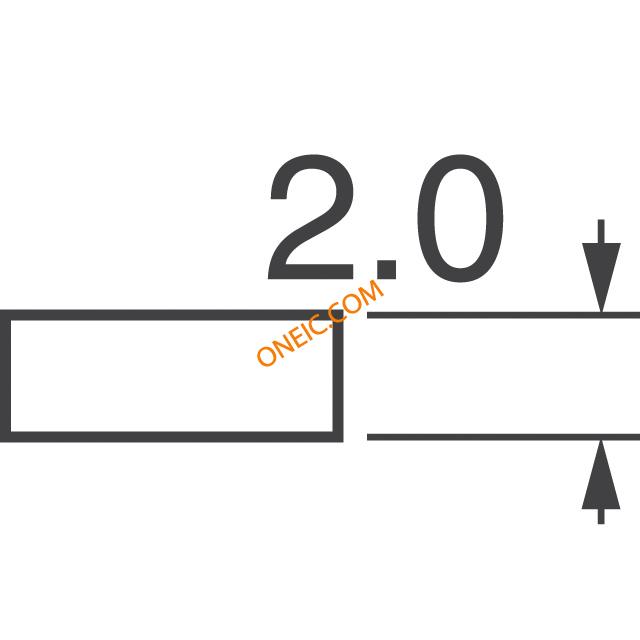

| 透镜样式/尺寸 | Rectangle with Flat Top, 5mm x 2mm |
| 颜色 | Red |
| Millicandela等级 | 10mcd |
| 波长 - 峰值 | 635nm |
| 标准包装 | 1,000 |
| 电流 - 测试 | 20mA |
| 身高 | 7.00mm |
| 镜头类型 | Diffused, Tinted |
| 封装/外壳 | Radial |
| RoHS指令 | Lead free / RoHS Compliant |
| 正向电流 | 30 mA |
| Bulb Size | :2mm x 5mm |
| 指示灯颜色 | :Red |
| Forward Current If | :20mA |
| 正向电压 | :2V |
| LED Mounting | :Through Hole |
| Wavelength Typ | :635nm |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.073 |
| Tariff No. | 85414010 |
| LED颜色 | :Red |
| Color,Emitted | Red |
| Color,Lens | Red |
| Current,Forward | 20mA |
| Finish,Lens | Diffused |
| LensShape | Rectangular |
| LuminousIntensity | 10mcd |
| MountingType | Thru-Hole |
| 技术 | GaP |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -40°C |
| Temperature,Soldering | 260 |
| ViewingAngle | 80° |
| Wavelength,Peak | 635nm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
