Linear Technology

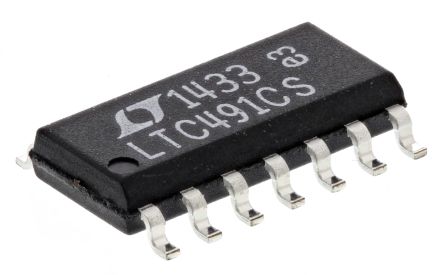

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Typical Single Supply Voltage | 5 |
| 安装 | Surface Mount |
| 数据传输拓扑 | Multidrop|Multipoint |
| Package Width | 3.99(Max) |
| PCB | 14 |
| 筛选等级 | Commercial |
| 功能 | Line Transmitter/Receiver |
| 欧盟RoHS指令 | Compliant |
| 最大电源电流 | 0.5 |
| 电源类型 | Single |
| 收发器数量 | 1 |
| 数据传输速率 | 2.5Mbps(Max) |
| 最低工作温度 | 0 |
| 变送器数 | 1 |
| 供应商封装形式 | SOIC N |
| 标准包装名称 | SOIC |
| 接收机信号类型 | Differential |
| 最高工作温度 | 70 |
| 最大单电源电压 | 5.25 |
| 接收器数 | 1 |
| 发射信号类型 | Differential |
| Package Length | 8.74(Max) |
| 引脚数 | 14 |
| 最小单电源电压 | 4.75 |
| Package Height | 1.5(Max) |
| 接口标准 | RS-422|RS-485 |
| 铅形状 | Gull-wing |
| 协议 | RS422, RS485 |
| 安装类型 | Surface Mount |
| 标准包装 | 55 |
| 复式 | Full |
| 的驱动器/接收器数 | 1/1 |
| 供应商设备封装 | 14-SOIC |
| 接收器滞后 | 70mV |
| 封装 | Tube |
| 工作温度 | 0°C ~ 70°C |
| 电压 - 电源 | 4.75 V ~ 5.25 V |
| 类型 | Transceiver |
| 其他名称 | LTC491CSPBF |
| 封装/外壳 | 14-SOIC (0.154", 3.90mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 8.74 x 3.99 x 1.48mm |
| 身高 | 1.48mm |
| 长度 | 8.74mm |
| 最高工作温度 | +70 °C |
| 最低工作温度 | 0 °C |
| 每个线路驱动器数量 | 1 (RS422), 32 (RS485) |
| 每行接收器数 | 10 (RS422), 32 (RS485) |
| 包装类型 | SOIC N |
| 典型的单电源电压 | 5 V |
| 宽度 | 3.99mm |
| 接口电路标准1 | RS-422/RS-485 |
| 工作温度范围 | 0C to 70C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | Not Required V |
| 电源要求 | Single |
| 电源电流 | 0.5 mA |
| Dual Supply Voltage (Min) | Not Required V |
| 弧度硬化 | No |
| 单电源电压（最小值） | 4.75 V |
| 单电源电压（最大值） | 5.25 V |
| 单电源电压（典型值） | 5 V |
| Dual Supply Voltage (Max) | Not Required V |
| 删除 | Compliant |
| 设备类型 | :Differential |
| IC Interface Type | :RS422, RS485 |
| No. of Drivers | :1 |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Driver Case Style | :SOIC |
| No. of Pins | :14 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :491 |
| Line / Bus Driver / Receiver / Transceiver Type | :Differential Bus |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Range | :4.75V to 5.25V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423190 |
| 封装/外壳 | 14-SOIC (0.154", 3.90mm Width) |
| 案例 | SO14 |
| Transceivers amount | 1 |
| Multiplicity | 1 |
| Integrated circuit type | line transmitter-receiver |
| Gross weight | 0.59 g |
| 电源电压 | 5V DC |
| 接口 | RS422 / RS485 |
| Collective package [pcs] | 1 |
| spg | 1 |
