Linear Technology

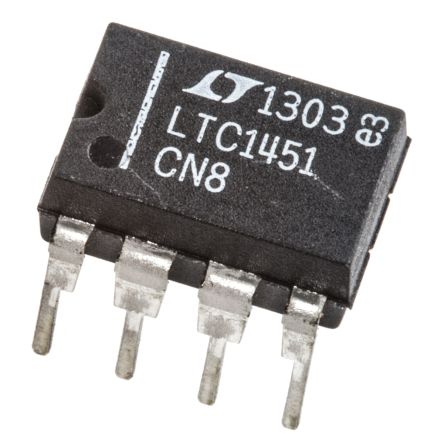

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 供应商封装形式 | PDIP N |
| 标准包装名称 | PDIP |
| 典型的单电源电压 | 5 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 最小单电源电压 | 4.5 |
| 最大单电源电压 | 5.5 |
| 电源类型 | Single |
| 转换器类型 | General Purpose |
| 输出类型 | Voltage |
| 数字接口类型 | Serial (3-Wire) |
| DAC通道数 | 1 |
| 积分非线性误差 | ±4LSB |
| 筛选等级 | Commercial |
| 最大建立时间 | 14(Typ) |
| 最低工作温度 | 0 |
| 分辨率 | 12bit |
| 引脚数 | 8 |
| 铅形状 | Through Hole |
| 位数 | 12 |
| 输出数目和类型 | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| 安装类型 | Through Hole |
| 建立时间 | 14µs |
| 数据接口 | Serial |
| 采样率（每秒） | * |
| 转换器数量 | 1 |
| 供应商设备封装 | 8-PDIP |
| 电压电源 | Single Supply |
| 封装 | Tube |
| 工作温度 | 0°C ~ 70°C |
| 标准包装 | 50 |
| 其他名称 | LTC1451CN8PBF |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 分辨率（位） | :12bit |
| Input Channel Type | :Serial |
| Supply Voltage Range | :4.5V to 5.5V |
| Digital IC Case Style | :DIP |
| No. of Pins | :8 |
| 电源电流 | :400µA |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| A/D / D/A Features | :CMOS, Internal Reference, Rail-to-Rail |
| Base Number | :1451 |
| Conversion Time | :14µs |
| IC Case Style | :DIP |
| IC Generic Number | :1451 |
| IC Temperature Range | :Commercial |
| 线性误差 | :3.5% |
| Linearity Error ADC / DAC + | :0.5LSB |
| Linearity Error ADC / DAC - | :0.5LSB |
| Logic Function Number | :1451 |
| No. of Bits | :12 |
| No. of Channels | :1 |
| No. of DACs | :1 |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Max | :5.5V |
| Supply Voltage Min | :4.5V |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423990 |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
