Linear Technology

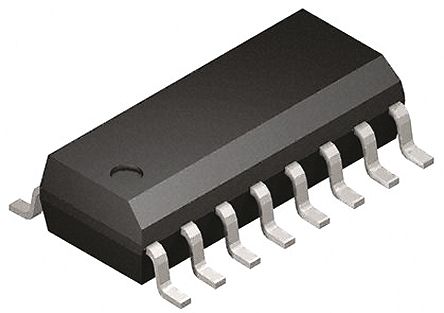

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Typical Single Supply Voltage | 3 |
| 安装 | Surface Mount |
| Package Width | 3.99(Max) |
| 筛选等级 | Commercial |
| PCB | 16 |
| 最大导通电阻 | 255@3V |
| 最大功率耗散 | 500 |
| Maximum Dual Supply Voltage | ±7.5 |
| Maximum Turn-Off Time | 300@3V@0C to 70C |
| 欧盟RoHS指令 | Compliant |
| Maximum Supply Current | ±0.04@±5V@0C to 70C |
| 电源类型 | Single|Dual |
| 每个芯片的通道数 | 1 |
| 最低工作温度 | 0 |
| 配置 | Single 8:1 |
| 供应商封装形式 | SOIC N |
| 标准包装名称 | SOIC |
| 多路复用器架构 | 8:1 |
| 最高工作温度 | 70 |
| Typical Dual Supply Voltage | ±5 |
| 每个芯片的输入端数量 | 8 |
| Package Length | 10.01(Max) |
| 引脚数 | 16 |
| 每个芯片的输出端数量 | 1 |
| 类型 | Analog Multiplexer |
| Package Height | 1.5(Max) |
| 最大开启时间 | 700@3V@0C to 70C |
| 铅形状 | Gull-wing |
| 功能 | Multiplexer |
| 电路 | 1 x 8:1 |
| 安装类型 | Surface Mount |
| 供应商设备封装 | 16-SOIC |
| 电压电源 | Single, Dual Supply |
| 封装 | Tube |
| 工作温度 | 0°C ~ 70°C |
| 电流 - 电源 | 200nA |
| 导通状态电阻 | 255 Ohm |
| Voltage - Supply, Single/Dual (±) | 3V, ±5V |
| 标准包装 | 50 |
| 其他名称 | LTC1390CSPBF |
| 封装/外壳 | 16-SOIC (0.154", 3.90mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 功率耗散 | 0.5 W |
| 通道数 | 1 |
| 工作温度范围 | 0C to 70C |
| 包装类型 | SOIC N |
| 工作温度分类 | Commercial |
| 输入数 | 8 |
| 输出数 | 1 |
| Dual Supply Voltage (Typ) | �5 V |
| 电源要求 | Single/Dual |
| 弧度硬化 | No |
| 单电源电压（典型值） | 3 V |
| Dual Supply Voltage (Max) | �7.5 V |
| 复用器配置 | Single 8 |
| 模拟开关导通电阻 | 255@3V ohm |
| 模拟开关关闭时间 | 300@3V@0C to 70C ns |
| 模拟开关开启时间 | 700@3V@0C to 70C ns |
| 删除 | Compliant |
| No. of Circuits | :1 |
| 电源电流 | :15µA |
| On State Resistance Max | :300ohm |
| Supply Voltage Range | :3V to ± 5V |
| Analogue Switch Case Style | :SOIC |
| No. of Pins | :16 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| 工作温度范围 | :0°C to +70°C |
| Weight (kg) | 0.000638 |
| Tariff No. | 85423990 |
| 封装/外壳 | 16-SOIC (0.154", 3.90mm Width) |
| 案例 | SO8 |
| Multiplicity | 1 |
| Gross weight | 0.01 g |
| Number of channels | 8 |
| 电源电压 | 3...5V DC |
| Integrated circuit type | multiplexer |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
