ABRACON
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | ABM7-8.000MHZ-D-2-Y-T, ABM7-8.000MHz-D2Y-T |
| 子类别 | Crystals |
| 封装 | Tape and Reel |
| 交货期 | 84 Days |
| 频率稳定度 | ±30ppm |
| 频率公差 | ±20ppm |
| 安装类型 | Surface Mount |
| 负载电容 | 18pF |
| 操作模式 | Fundamental |
| ESR（等效串联电阻） | 100 Ohm |

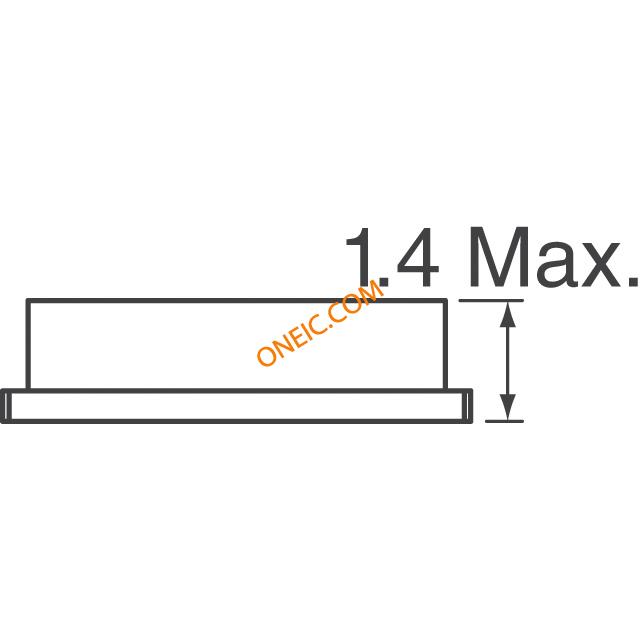

| 身高 | 0.055" (1.40mm) |

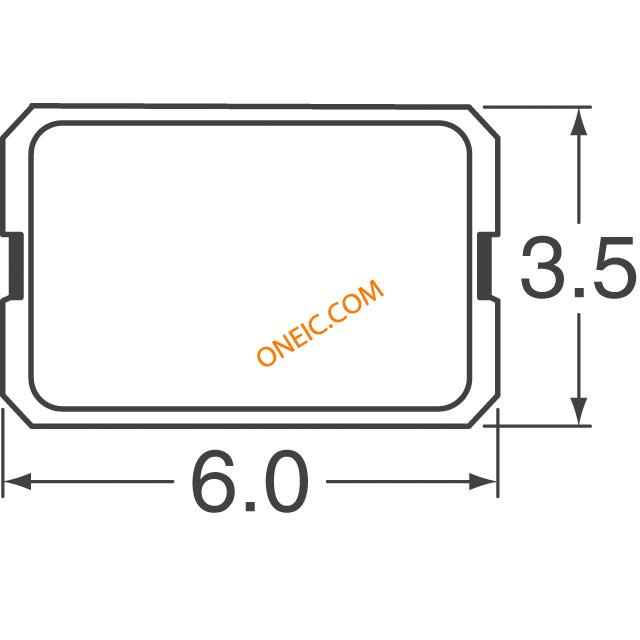

| 尺寸/尺寸 | 0.236" L x 0.138" W (6.00mm x 3.50mm) |
| 工作温度 | -40°C ~ 85°C |
| 频率 | 8MHz |
| 标准包装 | 1,000 |
| 封装/外壳 | 2-SMD |
| 类型 | MHz Crystal |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | 535-9831-1 |
| 产品种类 | Crystals |
| 外形尺寸 | 3.3 mm W x 6 mm L x 1.3 mm H |
| 工作温度范围 | - 40 C to + 85 C |
| 系列 | ABM7 |
| 端接类型 | SMD/SMT |
| 容差 | 20 PPM |
| RoHS | RoHS Compliant By Exemption |
| 血沉 | 60 Ohms |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| Crystal Mounting Type | :SMD |
| Crystal Case Type | :6mm x 3.5mm |
| No. of Pins | :2 |
| Weight (kg) | 0.001 |
| Tariff No. | 85416000 |
| Frequency stability | ±30ppm |
| Body dimensions | 6 x 3.5 x 1.4mm |
| Resonator type | ceramic |
| Time stability | ±5ppm/year |
| Multiplicity | 1 |
| Gross weight | 0.23 g |
| 电容 | 18pF |
| Operating temperature | -40...85°C |
| 安装 | SMD |
| Collective package [pcs] | 1000 |
| Resonator tolerance | ±20ppm |
| spg | 1000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
