Keystone Electronics
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Standoffs & Spacers |
| RoHS | RoHS Compliant |

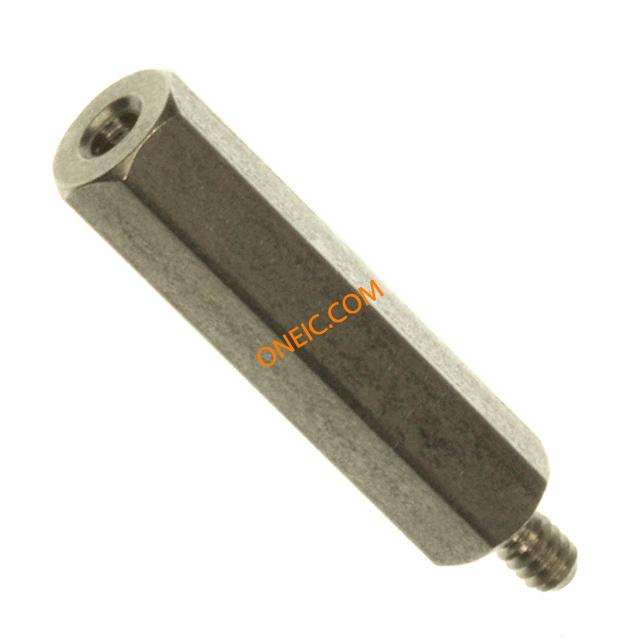

| 类型 | Standoffs, Hex Male/Female Threaded |
| 长度 | 1 in |
| 螺纹尺寸 | 4-40 |
| 外直径6mm | 0.25 in |
| 材质 | Stainless Steel |
| 性别 | Male / Female |
| 工厂包装数量 | 100 |
| 子类别 | Standoffs |
| 交货期 | 56 Days |
| 长度 - 总体 | 1.188" (30.18mm) 1 3/16" |
| 螺纹/螺钉/孔尺寸 | 4-40 Thread |
| 颜色 | Natural |
| 板间高度 | 1.000" (25.40mm) 1" |
| 标准包装 | 1 |

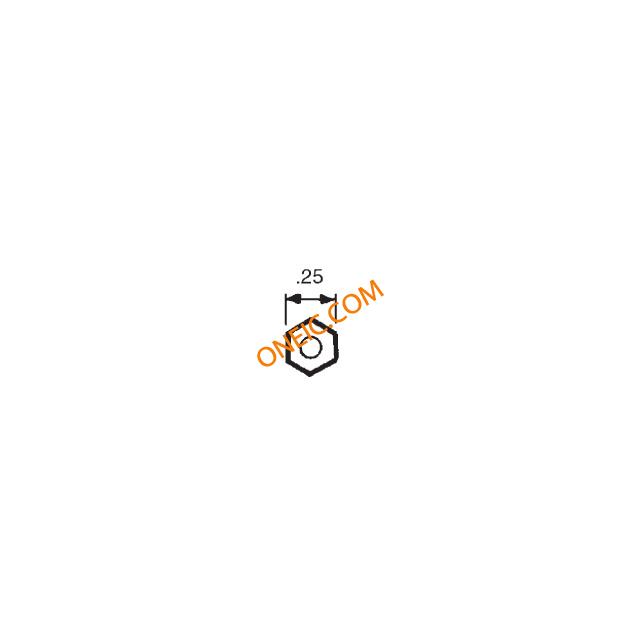

| 直径 - 外部 | 0.250" (6.35mm) 1/4" Hex |
| 其他名称 | 2092K |
| 螺纹/无螺纹 | Threaded |
| RoHS指令 | Lead free / RoHS Compliant |

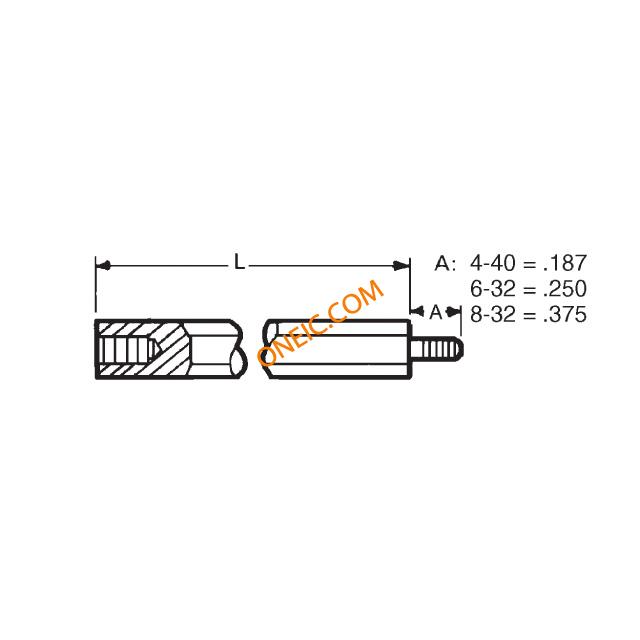

| Length,Body | 1" |
| Length,ExternalThread | 0.187" |
| 形状 | 0.25"Hex |
| 尺寸 | 0.25" |
| Size,Thread | 4-40 |
| 标准 | ASTMA581/A582 |
| ThreadLength,Internal | 0.25" |
| ThreadSize | 4-40 |
