Norgren

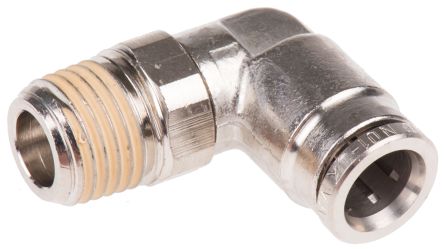

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Angle | 90° |
| 表面处理 | Nickel Plated |
| 制造商系列 | 1014 |
| 材质 | Brass, Glass Filled Nylon |
| 最大工作压力 | 18 bar |
| 最高工作温度 | +80°C |
| 最低工作温度 | -20°C |
| 螺纹连接 | R 1/4 Male |
| 螺纹连接 - 性别 | Male |
| 螺纹连接 - 螺纹尺寸 | 1/4in |
| 螺纹连接 - 螺纹标准 | R |
| 管连接 | Push In 8 mm |
| 管连接 - 管尺寸 | 8mm |
| 管连接 - 类型 | Push In |
| 接头类型 | :Elbow |
| 孔径 | :8mm |
| External Diameter | :8mm |
| 螺纹尺寸 | :1/4 |
| Thread Size - Metric | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Bore Diameter Max | :8mm |
| External Length / Height | :26.1mm |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-20°C |
| 外径 | :8mm |
| 总宽 | :21.3mm |
| Pressure Max | :18bar |
| Weight (kg) | 0.038 |
| Tariff No. | 74122000 |
| Splice terminal variant | angled |
| 螺纹 | BSP 1/4" |
| Multiplicity | 1 |
| Pneumatic accessories type | metal connector |
| Gross weight | 0.04 kg |
| Cable external diameter | 8mm |
| Collective package [pcs] | 10 |
| spg | 10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
