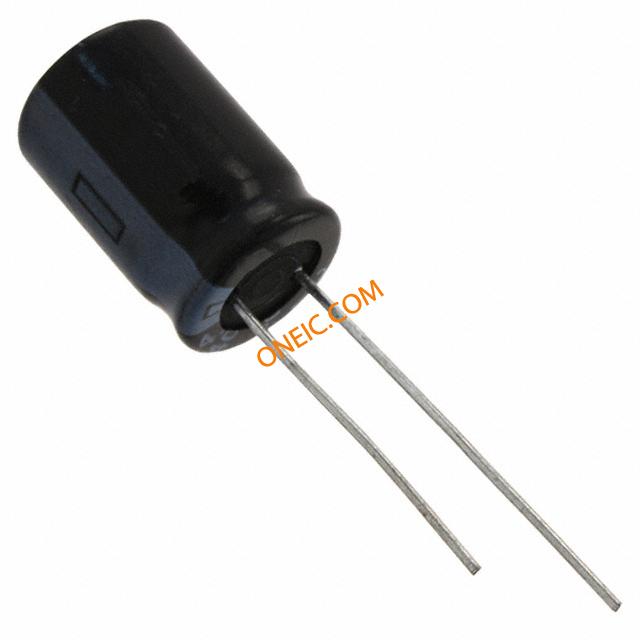

Kemet
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 表壳直径 | 10 mm |
| 产品 | General Purpose Electrolytic Capacitors |
| 产品种类 | Aluminum Electrolytic Capacitors - Leaded |
| 外形尺寸 | 10 mm Dia. x 16 mm L |
| 额定电压 | 16 V |
| 引线间距 | 5 mm |
| 工作温度范围 | - 40 C to + 105 C |
| 端接类型 | Radial |
| 封装 | Bulk |
| 电容 | 1000 uF |
| 表壳长度 | 16 mm |
| 系列 | ESH |
| 负载寿命 | 2000 h |
| 容差 | 20 % |
| RoHS | RoHS Compliant |
| 产品范围 | :KEMET - ESH Series |
| 电容公差 | :± 20% |
| 直径 | :10mm |
| 身高 | :16mm |
| Capacitor Terminals | :Radial Leaded |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.0022 |
| Tariff No. | 85322300 |
| CaseSize | 10mmDia.x15mmL |
| Material,Element | AluminumElectrolytic |
| 端子 | Radial |
| Voltage,Rating | 16VDC |
| Voltage,Surge | 20VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
