JST Sales America Inc

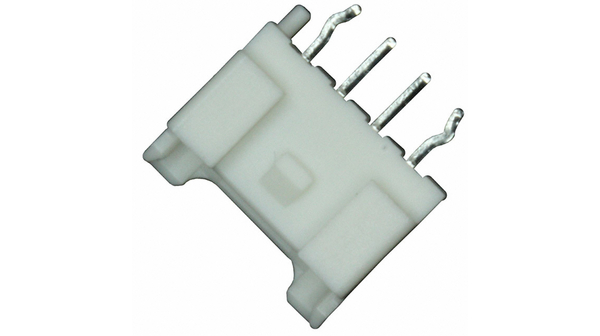

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Features | Board Guide |
| Mounting Type | Through Hole |
| Color | Natural |
| Standard Package | 1,000 |
| Connector Type | Header, Shrouded |
| Contact Finish | Tin |
| Packaging | Bulk |
| Number of Rows | 1 |
| Fastening Type | Locking Ramp |
| Pitch | 0.079" (2.00mm) |
| Contact Type | Male Pin |
| Termination | Press-Fit |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Current Rating | 3A |
| Number of Contacts | 4 |
| Series | PA |
| Termination Method | Solder |
| Type | Shrouded Header |
| Voltage Rating | 250 V ac/dc |
| rohs | Compliant |
| Connection principle | Wire-Board |
| Connector Termination | THT |
| Rated current | 3 A |
| Rated voltage | 250 |
| Colour | white |
| Poles | 4 |
| Housing Material | Polyamide (PA/Nylon) |
| Temperature range | -25...+85 °C |
| Insulation resistance | 1000 MOhm |
| Cross-section AWG | 28...22 AWG |
| Connector Design | Single row |
| Gender of contacts | Male |
| Combustibility class | UL 94 V-0 |
| Contact material | Tin-plated copper |
| 系列 | Polyamide |
| 主体向性 | 直 |
| 覆盖 | 覆盖 |
| 安装类型 | 通孔 |
| 触点材料 | 铜合金 |
| 端接方法 | 焊接 |
| 额定电流 | 3A |
| 行数 | 1 |
| 触点数目 | 4 |
| 类型 | 有罩针座 |
| 额定电压 | 250 V 交流/直流 |
| 节距 | 2mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
