Maxon

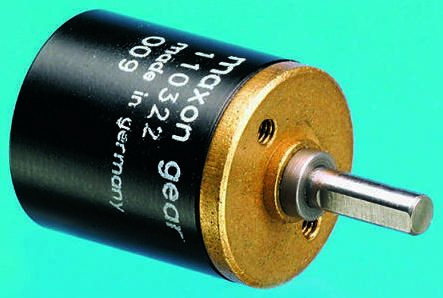

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 直径 | 16 mm |
| 齿轮比 | 1621:1 |
| 变速箱型号 | Planetary |
| 最大输出扭矩 | 0.45 Nm |
| 总长 | 29.9mm |
| 轴直径 | 3mm |
| RoHS指令 | Compliant |
| Output Shaft Material | :Stainless Steel |
| Input Speed | :8000rpm |
| Continuous Torque Max | :0.3N-m |
| 效率 | :59% |
| Gearhead Length | :29.9mm |
| Constant Torque | :0.3N-m |
| External Diameter | :16mm |
| External Length / Height | :55.3mm |
| 身高 | :55.3mm |
| 峰值扭矩 | :0.45N-m |
| Shaft Length - Metric | :8mm |
| Weight (kg) | 0.062 |
| Tariff No. | 84834051 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
