Marl

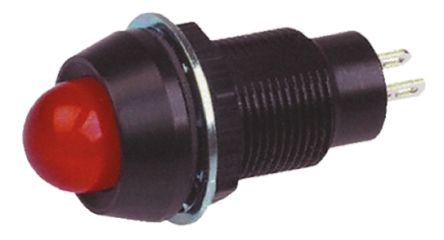

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 边框颜色 | Black |
| 表圈款式 | Prominent |
| 额定电流 | 20 mA |
| 强度 | 500 mcd @ 20mA |
| 灯体尺寸 | 10 mm |
| 光源类型 | LED |
| 长度 | 38.5 mm |
| 光输出颜色 | Red |
| 安装孔尺寸 | 12.7mm |
| 端接类型 | Solder Tab |
| 类型 | Panel Mount |
| 额定电压 | 24 V dc |
| Mounting Hole Dia | :12.7mm |
| 指示灯颜色 | :Red |
| Forward Current If | :20mA |
| 正向电压 | :12V |
| 发光强度 | :100mcd |
| SVHC | :No SVHC (20-Jun-2013) |
| Bezel Diameter | :17mm |
| Bulb Size | :10mm |
| Current If Luminous Intensity | :20mA |
| External Diameter | :17mm |
| External Length / Height | :38.5mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :24V |
| IP / NEMA Rating | :IP67 |
| LED / Lamp Size | :10mm |
| LED Colour Presentation | :Tinted Diffused |
| Length Behind Bezel | :26.5mm |
| 透镜形状 | :Dome |
| Luminous Intensity Typ | :90mcd |
| 材质 | :Aluminium, Black anodised |
| Operating Temperature Max | :86°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +86°C |
| Panel Thickness Max | :8mm |
| 峰值波长 | :660nm |
| 终端类型 | :2.8mm x 0.8mm |
| Voltage Rating V DC | :24V |
| Voltage Vf Typ | :24VDC |
| Wavelength Typ | :660nm |
| Weight (kg) | 0.055 |
| Tariff No. | 85414010 |
