Marl

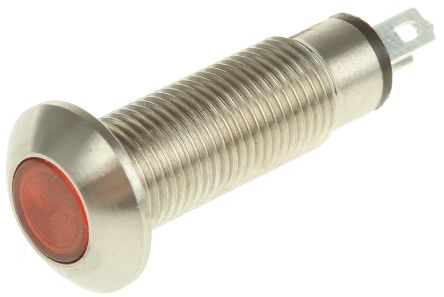

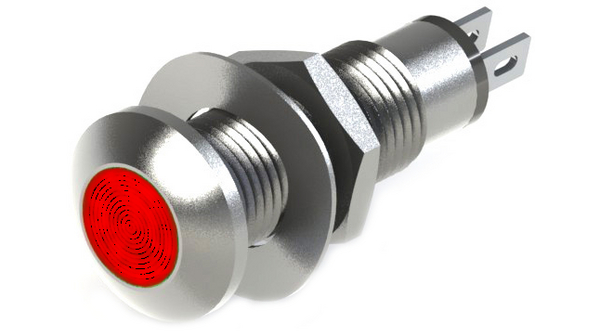

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 边框颜色 | Metallic (Stainless Steel) |
| 表圈款式 | Low Profile |
| 额定电流 | 6 → 16 mA |
| 强度 | 11000 mcd @ 20mA |
| 灯体尺寸 | 7 mm |
| 光源类型 | LED |
| 长度 | 31.9 mm |
| 光输出颜色 | Red |
| 安装孔尺寸 | 8.1mm |
| 端接类型 | Solder Tab |
| 类型 | Panel Mount |
| 额定电压 | 12 → 28 V ac/V dc |
| Mounting Hole Dia | :8.1mm |
| 指示灯颜色 | :Red |
| Forward Current If | :16mA |
| 正向电压 | :28V |
| 发光强度 | :11cd |
| SVHC | :No SVHC (20-Jun-2013) |
| Behind Panel Depth | :24mm |
| Bezel Depth | :2.9mm |
| Bezel Diameter | :12.7mm |
| Current If Min | :8mA |
| 安装孔直径 | :8.1mm |
| Forward Current If Max | :16mA |
| IP / NEMA Rating | :IP67 |
| 引线长度 | :5mm |
| 镜片颜色 | :Colour Diffused |
| Luminous Intensity @ If = 20mA | :11000mcd |
| Luminous Intensity Typ | :11000mcd |
| 材质 | :Stainless Steel |
| Operating Temperature Max | :95°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +95°C |
| 面板开孔直径 | :8.1mm |
| Peak Forward Current | :20mA |
| Reverse Protection Voltage | :1000VDC |
| Storage Temperature Max | :100°C |
| Storage Temperature Min | :-40°C |
| Supply Voltage Min | :12VDC |
| Supply Voltage V DC | :28VDC |
| 终端类型 | :Push-On |
| Wavelength Typ | :643nm |
| Weight (kg) | 0.006 |
| Tariff No. | 85414010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
