Marl

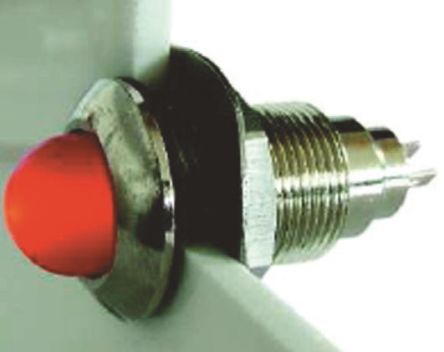

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 边框颜色 | Metallic (Stainless Steel) |
| 表圈款式 | Prominent |
| 额定电流 | 6 → 16 mA |
| 强度 | 450 mcd @ 20mA |
| 灯体尺寸 | 10 mm |
| 光源类型 | LED |
| 长度 | 37 mm |
| 光输出颜色 | Red |
| 安装孔尺寸 | 12.7mm |
| 端接类型 | Solder Tab |
| 类型 | Panel Mount |
| 额定电压 | 12 → 28 V dc |
| Mounting Hole Dia | :12.7mm |
| 指示灯颜色 | :Red |
| Forward Current If | :20mA |
| 正向电压 | :28V |
| 发光强度 | :450mcd |
| SVHC | :No SVHC (20-Jun-2013) |
| Behind Panel Depth | :22.5mm |
| Bezel Diameter | :17mm |
| Bulb Size | :10mm |
| Current If Min | :8mA |
| 安装孔直径 | :12.7mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :28VDC |
| IP / NEMA Rating | :IP67 |
| LED / Lamp Size | :10mm |
| 引线长度 | :5mm |
| 镜片颜色 | :Colour Diffused |
| Luminous Intensity @ If = 20mA | :450mcd |
| Luminous Intensity Typ | :450mcd |
| 材质 | :Stainless Steel |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +85°C |
| 面板开孔直径 | :12.7mm |
| Peak Forward Current | :20mA |
| Reverse Protection Voltage | :1000VDC |
| 标准 | :GaAIAs |
| Storage Temperature Max | :85°C |
| Storage Temperature Min | :-40°C |
| Supply Voltage Min | :12VDC |
| Supply Voltage V DC | :28VDC |
| 终端类型 | :Push-On |
| 可视角度 | :180° |
| Wavelength Typ | :660nm |
| Weight (kg) | 0.022 |
| Tariff No. | 85414010 |
