Marl

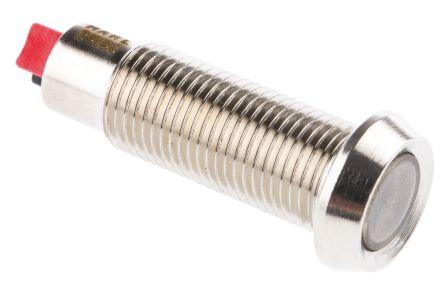

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 边框颜色 | Metallic (Bright Nickel) |
| 表圈款式 | Recessed |
| 额定电流 | 20 mA |
| 灯体尺寸 | 7 mm |
| 光源类型 | LED |
| 长度 | 33 mm |
| 光输出颜色 | Green |
| 安装孔尺寸 | 8.1mm |
| 端接类型 | Solder Tab |
| 类型 | Panel Mount |
| 额定电压 | 24 V dc |
| Mounting Hole Dia | :8.1mm |
| 指示灯颜色 | :Green |
| Forward Current If | :20mA |
| 正向电压 | :24V |
| 发光强度 | :23cd |
| SVHC | :No SVHC (20-Jun-2013) |
| Bezel Diameter | :11.5mm |
| 主体镀层 | :Nickel |
| Bulb Size | :7mm |
| Current If Luminous Intensity | :20mA |
| External Diameter | :11.5mm |
| External Length / Height | :33mm |
| 安装孔直径 | :8.1mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :24V |
| IP / NEMA Rating | :IP67 |
| LED / Lamp Size | :7mm |
| Length Behind Bezel | :29.3mm |
| 透镜形状 | :Round with Flat Top |
| Luminous Intensity Typ | :6000mcd |
| 材质 | :Brass |
| 安装类型 | :Panel |
| Operating Current DC | :20mA |
| Operating Lifetime | :90000h |
| Operating Temperature Max | :60°C |
| Operating Temperature Min | :-20°C |
| 工作温度范围 | :-20°C to +60°C |
| 峰值波长 | :525nm |
| 终端类型 | :Push on spade |
| Voltage Rating V DC | :24V |
| Voltage Vf Typ | :24VDC |
| Wavelength Typ | :525nm |
| Weight (kg) | 0.0811 |
| Tariff No. | 85414010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
