IXYS

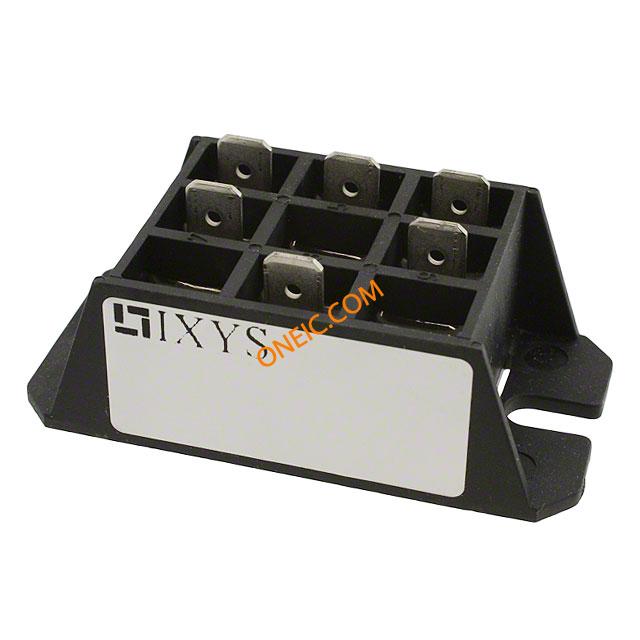

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | SCR Module |
| Repetitive Peak Reverse Voltage | 1400 |
| 最高工作温度 | 125 |
| Maximum Holding Current | 100 |
| 安装 | Screw |
| Repetitive Peak Off-State Current | 5 |
| Surge Current Rating | 330 |
| Maximum Gate Trigger Voltage | 1 |
| Repetitive Peak Forward Blocking Voltage | 1400 |
| Package Height | 21 |
| 欧盟RoHS指令 | Compliant |
| Peak On-State Voltage | 1.6@45A |
| Package Width | 31.6 |
| Maximum Gate Peak Inverse Voltage | 10 |
| PCB | 6 |
| Package Length | 63 |
| 最低工作温度 | -40 |
| Operating Junction Temperature | -40 to 125 |
| Rated Average On-State Current | 32 |
| 引脚数 | 6 |
| Maximum Gate Trigger Current | 65 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 10 |
| 额定重复关闭状态电压VDRM | 1400 V |
| 关闭状态漏泄电流@ VDRM IDRM | 5 mA |
| 封装/外壳 | FO-F-A |
| 封装 | Bulk |
| 安装风格 | Screw |
| 不重复通态电流 | 330 A |
| 门极触发电流 | 65 mA |
| 电路类型 | SCR |
| 额定电流 | 32 A |
| RoHS | RoHS Compliant |
| 保持电流Ih最大值 | 100 mA |
| 系列 | VHF28 |
| 品牌 | IXYS |
| Gate Trigger Voltage - Vgt | 1 V |
| 门极触发电流 - IGT为150mA | 65 mA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
