IXYS

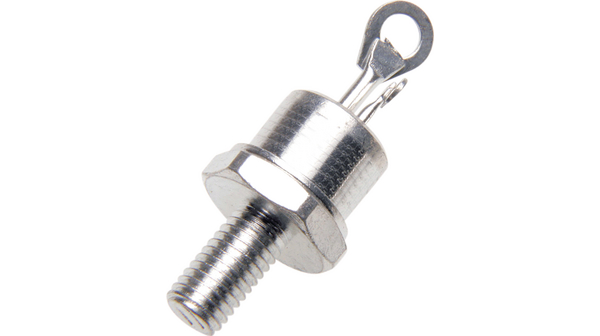

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Repetitive Peak Reverse Voltage | 1600 |
| 安装 | Stud |
| Surge Current Rating | 480 |
| Maximum Gate Trigger Voltage | 2.5 |
| Package Width | 14 |
| PCB | 3 |
| 类型 | SCR |
| Peak On-State Voltage | 1.8@80A |
| 欧盟RoHS指令 | Compliant |
| Maximum Holding Current | 100 |
| Repetitive Peak Forward Blocking Voltage | 1600 |
| Maximum Gate Peak Inverse Voltage | 10 |
| 最低工作温度 | -40 |
| 供应商封装形式 | TO-208AA |
| 标准包装名称 | TO-208AA |
| 最高工作温度 | 125 |
| Package Length | 15.7 |
| Operating Junction Temperature | -40 to 125 |
| Rated Average On-State Current | 32 |
| 引脚数 | 3 |
| Maximum Gate Trigger Current | 50 |
| Package Height | 39.5 |
| Repetitive Peak Off-State Current | 3 |
| 铅形状 | Terminal Stud |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 10 |
| 产品种类 | SCRs |
| 额定重复关闭状态电压VDRM | 1.6 kV |
| 最大栅极峰值反向电压 | 10 V |
| 安装风格 | Stud |
| 正向电压下降 | 1.8 V |
| 不重复通态电流 | 480 A |
| 封装 | Bulk |
| 门极触发电流 | 50 mA |
| 封装/外壳 | TO-208-AA |
| 关闭状态漏泄电流@ VDRM IDRM | 3 mA |
| RoHS | RoHS Compliant |
| Voltage rise | 1000 |
| Periodic peak voltage | 1600 |
| Min ignition current | 50 mA |
| Ignition voltage | 2.5 |
| Housing type | TO-208AA (M6) |
| Conducting-state current | 32 |
| 额定电流 | 32 A |
| 保持电流Ih最大值 | 100 mA |
| 系列 | CS23-16IO2 |
| 品牌 | IXYS |
| Gate Trigger Voltage - Vgt | 2.5 V |
| 最低工作温度 | - 40 C |
| Vf - Forward Voltage | 1.8 V |
| 门极触发电流 - IGT为150mA | 50 mA |
| 最高工作温度 | + 125 C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
