IXYS

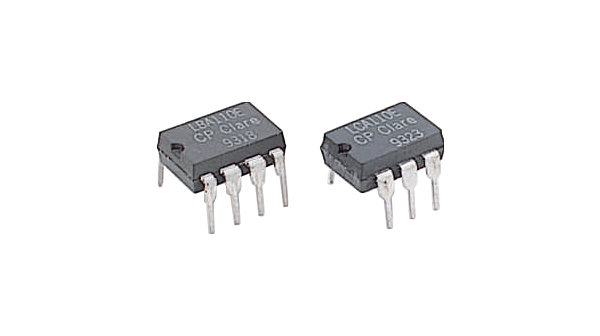

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Solid State Relays - PCB Mount |
| RoHS | RoHS Compliant |
| 额定负载电压 | 350 V |
| 额定负载电流 | 120 mA |
| 封装/外壳 | SIP-8 |
| 封装 | Tube |
| 产品类型 | PCB Mount |
| 系列 | LAA |
| 工厂包装数量 | 50 |
| 继电器类型 | Relay |
| 安装类型 | Through Hole |
| 负载电流 | 120mA |
| 电压 - 负载 | 0 ~ 350 V |
| 端接类型 | PC Pin |
| 供应商设备封装 | 8-DIP |
| 输出类型 | AC, DC |
| 导通状态电阻 | 35 Ohm |
| 电路 | DPST (2 Form A) |
| 标准包装 | 50 |
| 电压 - 电压 | 1.2VDC |
| 其他名称 | CLA103 |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 输入电流 | 50 mA |
| Output OFF time | 3 |
| 接触电阻 | 25 |
| Switching voltage | 350 |
| 联系方式 | 2 make contacts (NO) |
| Switched current | 120 |
| Output ON time | 3 |
| 测试电压 | 3.75 |
| 设计 | DIL8 |
| Temperature range | -40...+85 °C |
| LED threshold voltage | 1.2 |
| LED operating current | 5 |
| LED maximum current | 50 |
