Bourns
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Thick Film Resistors - Through Hole |
| RoHS | RoHS Compliant |
| 电阻 | 4.7 Ohms |
| 容差 | 1 % |
| 额定功率 | 30 W |
| 温度系数 | 100 PPM / C |
| 系列 | PWR221T-30 |
| 端接类型 | Radial |
| 额定电压 | 2 kV |
| 工作温度范围 | - 55 C to + 150 C |

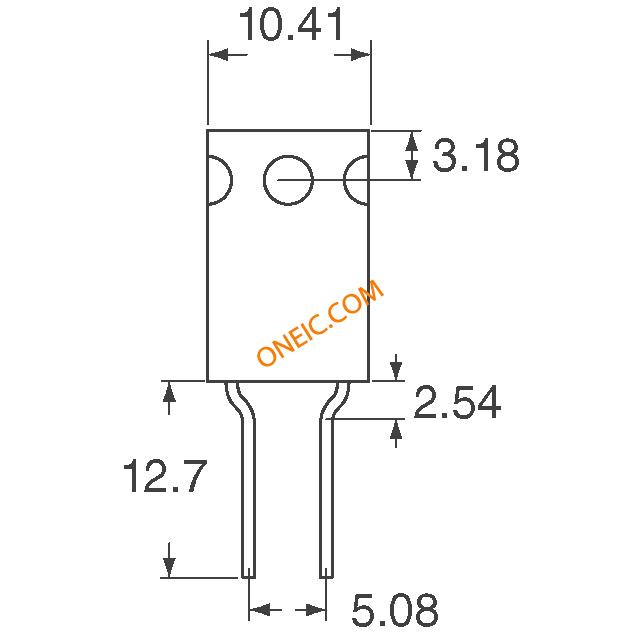

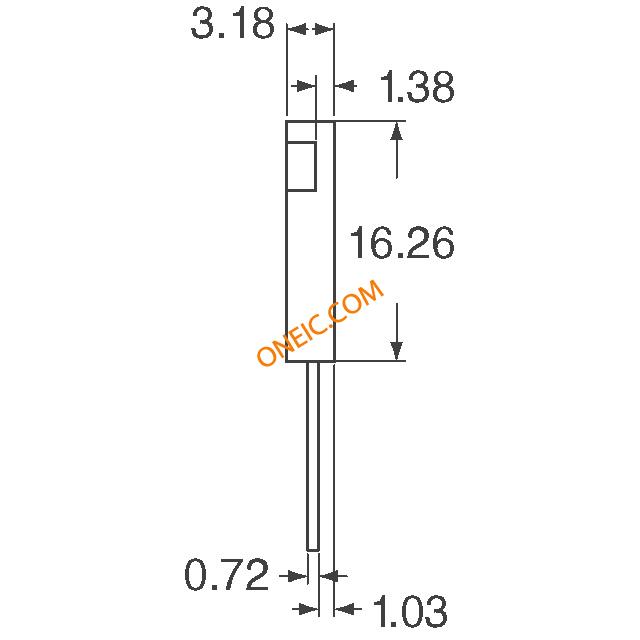

| 外形尺寸 | 3.18 mm W x 10.41 mm L x 16.26 mm H |
| 封装 | Tube |
| 表壳厚度 | 16.26 mm |
| 表壳长度 | 10.41 mm |
| 表壳宽度 | 3.18 mm |
| 引线间距 | 5.08 mm |
| 产品 | Thick Film Resistors Leaded |
| 类型 | Power Resistors |
| 电阻（欧姆） | 4.7 |
| 产品特点 | Current Sense, Pulse Withstanding |
| 端子数 | 2 |
| 供应商设备封装 | TO-220-2 |
| 身高 | 0.760" (19.30mm) |
| 尺寸/尺寸 | 0.410" L x 0.125" W (10.41mm x 3.18mm) |
| 功率（瓦特） | 30W |
| 标准包装 | 50 |
| 成分 | Thick Film |
| 其他名称 | PWR221T304R70F |
| 封装/外壳 | TO-220-2 |
| RoHS指令 | Lead free / RoHS compliant by exemption |
| 产品范围 | :BOURNS - PWR221T-30 Series |
| 电阻公差 | :± 1% |
| Resistor Case Style | :TO-220 |
| Resistor Element Material | :Thick Film |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.00136 |
| Tariff No. | 85331000 |
| 案例 | TO220 |
| Power without heatsink | 2.25W |
| 功率 | 30W |
| 安装 | THT |
| Resistor type | thick film |
| Resistor characteristics | needs additional heatsink |
| Gross weight | 3 g |
| Operating temperature | -55...150°C |
| Multiplicity | 1 |
| spg | 50 |
| Collective package [pcs] | 50 |
| Max operating voltage | 250V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
