Bourns

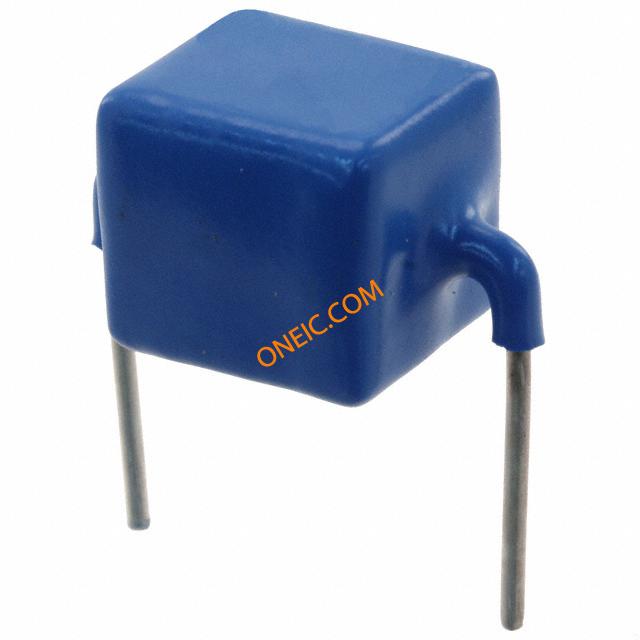

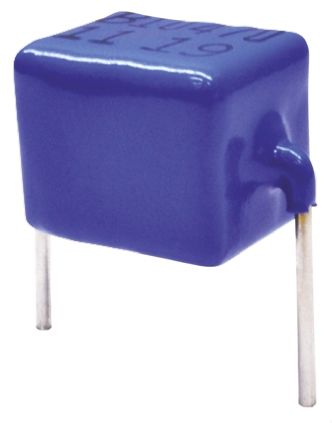

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 电压 - 钳位（最大） @ IPP | 500V |
| 安装类型 | Through Hole |
| 双向通道数 | 1 |
| 供应商设备封装 | Axial |
| 电压 - 击穿（最小值） | 336V |
| 电压 - 反向隔离（标准值） | 320V |
| 应用范围 | General Purpose |
| 工作温度 | -40°C ~ 125°C |
| 标准包装 | 2 |
| 电源线保护 | No |
| 类型 | Zener |
| 其他名称 | PTVS10320C |
| 电流 - 峰值脉冲（ 10/1000μS ） | 10000A (10kA) (8/20µs) |
| 封装/外壳 | Axial, Right Angle Bend (24.15mm Center) |
| 极性 | Bidirectional |
| 钳位电压 | 440 V |
| 产品种类 | TVS Diodes - Transient Voltage Suppressors |
| 外形尺寸 | 16 mm W x 19 mm L x 16 mm H |
| 通道 | 1 Channel |
| 系列 | PTVS10 |
| 端接类型 | Axial |
| 安装风格 | Radial |
| 电容 | 2.7 nF |
| 击穿电压 | 350 V |
| 工作电压 | 320 V |
| 峰值浪涌电流 | 10 kA |
| RoHS | RoHS Compliant |
| 标准包装 | 10 |
| TVS Polarity | :Bidirectional |
| Reverse Stand-Off Voltage Vrwm | :320V |
| Breakdown Voltage Min | :336V |
| Breakdown Voltage Max | :368V |
| Clamping Voltage Vc Max | :500V |
| Peak Pulse Current Ippm | :10kA |
| Diode Case Style | :Axial Leaded |
| No. of Pins | :2 |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Breakdown Voltage Range | :336V to 368V |
| Weight (kg) | 0.021 |
| Tariff No. | 85411000 |
| Brand/Series | PTVS10Series |
| 配置 | Bidirectional |
| Current,Reverse | 10uA |
| Current,Surge | 10kA |
| MountingType | Thru-Hole |
| PrimaryType | Diodes |
| Temperature,Junction,Maximum | 150°C |
| Temperature,Operating | -55to150°C |
| Voltage,Breakdown | 350V |
| Voltage,Clamping | 440V |
| Voltage,StandOff | 320V |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
