bourns

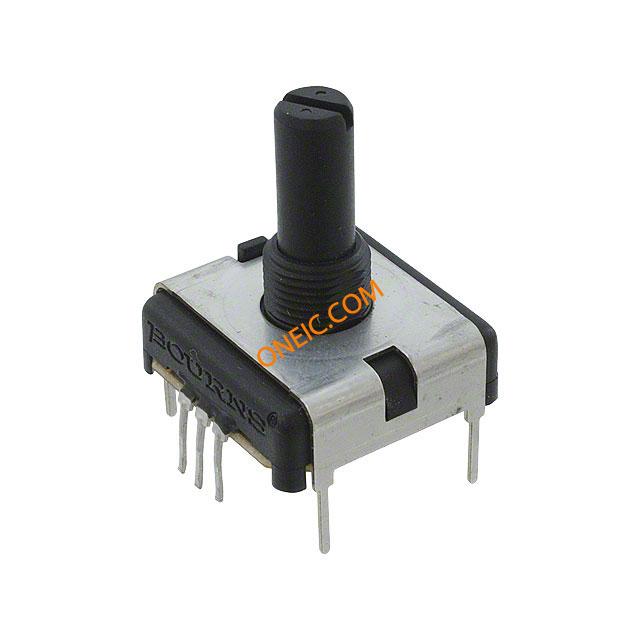

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Potentiometer |
| 电阻值 | 50 KOhm |
| 容差 | 20 % |
| 圈数 | 1(Elec)|1(Mech) Turns |
| 额定功率 | 3/4 W |
| 安装 | Panel Mount/Bracket Mount |
| 工作温度 | 1 to 125 °C |
| 轴直径 | 6.35 mm |
| 标准包装 | Bulk |
| 产品长度 | 23.37 |
| 欧盟RoHS指令 | Compliant |
| 轴直径 | 6.35 |
| 温度系数 | ±1000 |
| 端接类型 | Pin |
| 电阻值 | 50K |
| 产品高度 | 27.36 |
| 额定功率 | 0.75 (3/4) |
| 圈数 | 1(Elec)|1(Mech) |
| 电阻（欧姆） | 50k |
| 促动器长度 | 0.750" (19.05mm) |
| 安装类型 | Through Hole |
| 温度系数 | ±1000ppm/°C |
| 尺寸 - 主体 | Square - 0.920" x 0.920" Face x 0.327" L (23.37mm x 23.37mm x 8.31mm) |
| 封装 | Tray |
| 电阻材料 | Conductive Plastic |
| 功率（瓦特） | 0.75W, 3/4W |
| 促动器直径 | 0.249" (6.32mm) |
| 调节型 | Top Adjustment |
| 执行器类型 | Slotted Shaft |
| 回转 | 300° |
| 其他名称 | PCW1JB24BAB503L |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 45 |
| 产品 | Potentiometer |
| 产品种类 | Potentiometers |
| 工作温度范围 | + 1 C to + 125 C |
| 元素类型 | Conductive Plastic |
| 锥度 | Linear |
| 轴类型 | Slotted |
| 电阻 | 50 kOhms |
| 安装风格 | Panel |
| 轴长度 | 19 mm |
| 系列 | PC |
| RoHS | RoHS Compliant |
| Track Resistance | :50kohm |
| Track Taper | :Linear |
| No. of Turns | :1 |
| 电阻公差 | :± 20% |
| Potentiometer Mounting | :Panel |
| No. of Gangs | :1 |
| Weight (kg) | 0 |
| Tariff No. | 85334090 |
| Angle,Mechanical | 300° |
| Diameter,Shaft | 0.25" |
| DielectricStrength | 1000VAC |
| 外形尺寸 | 0.92"L×0.92"W×0.327"H |
| 线性 | ±5% |
| Material,Element | ConductivePlastic |
| MountingType | Panel |
| NumberofTurns | 1 |
| Power,Rating | 0.75W |
| Resistance,Insulation | 1000Ohms |
| 分辨率 | Infinite |
| RotationalLife | 50000Cycles |
| TemperatureCoefficient | ±1000ppm/°C |
| Temperature,Operating,Maximum | +125°C |
| Temperature,Operating,Minimum | +1°C |
| 端子 | PCPins |
| 扭矩 | 0.5to1.5N-cm |
| Shaft surface | smooth |
| Fastening thread | M9x0,75 |
| spg | 45 |
| 功率 | 750mW |
| Potentiometer kind | single turn |
| Operating temperature | 1...125°C |
| Mounting holes pitch | 15 x 23mm |
| Body dimensions | 23.4 x 22 x 8.3mm |
| Multiplicity | 1 |
| Track material | plastic |
| Gross weight | 0.6 g |
| Shaft material | plastic |
| 轴长度 | 12.7mm |
| Thread length | 6.35mm |
| 轴直径 | 6.35mm |
| Terminal pitch | 2.54mm |
| Potentiometer type | shaft |
| Characteristics | linear |
| Collective package [pcs] | 45 |
