Bourns

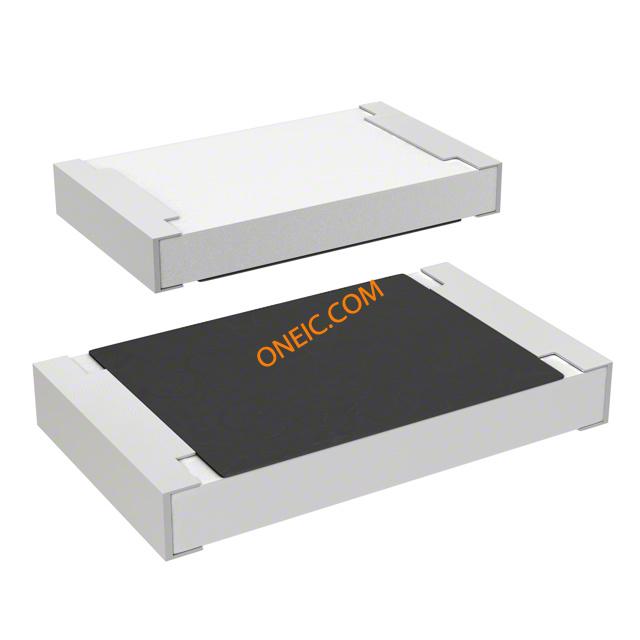

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Tape & Reel (TR) |
| 电阻（欧姆） | 0.51 |
| 产品特点 | Current Sense, Pulse Withstanding |
| 端子数 | 2 |
| 供应商设备封装 | 0805 |
| 温度系数 | ±100ppm/°C |
| 身高 | 0.024" (0.60mm) |
| 尺寸/尺寸 | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| 功率（瓦特） | 0.25W, 1/4W |
| 标准包装 | 5,000 |
| 容差 | ±1% |
| 成分 | Thick Film |
| 封装/外壳 | 0805 (2012 Metric) |
| 其他名称 | CRM0805-FX-R510ELFCT |
| RoHS指令 | Lead free / RoHS compliant by exemption |
| 产品范围 | :BOURNS - CRM Series |
| 电阻 | :0.51ohm |
| 额定功率 | :250mW |
| 电阻公差 | :± 1% |
| Resistor Case Style | :0805 [2012 Metric] |
| Resistor Element Material | :Thick Film |
| 额定电压 | :477mV |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| 外部深度 | :1.20mm |
| External Length / Height | :0.50mm |
| 外宽 | :2mm |
| No. of Pins | :2 |
| Resistor Mounting | :SMD |
| 系列 | :CRM |
| Weight (kg) | 0.000004 |
| Tariff No. | 85331000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
