bourns

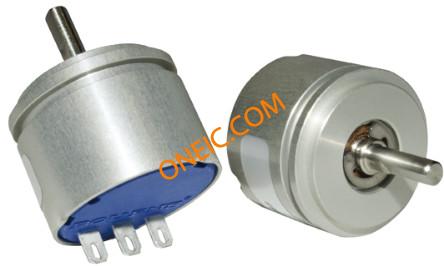

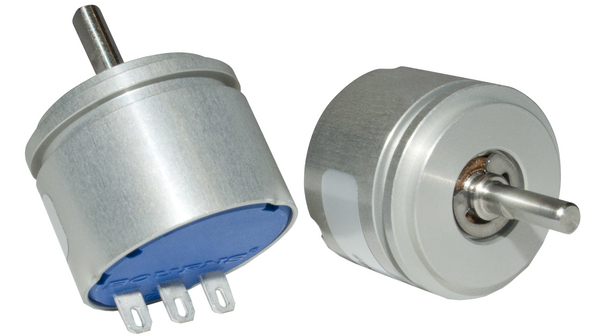

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 家庭 | AMS22S |
| 标准包装 | Bulk |
| 功能 | * |
| 端接类型 | * |
| 输出类型 | Analog |
| 电压 - 电源 | 4.5 V ~ 5.5 V |
| 类型 | Hall Effect |
| 执行器材质 | * |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 22.23mm |
| 长度 | 15.62mm |
| 最高工作温度 | +125°C |
| 最低工作温度 | -40°C |
| 安装类型 | Servo Mount |
| 圈数 | 1 |
| 电位器类型 | Linear |
| 轴直径 | 2.67 mm |
| 安装风格 | Chassis |
| 产品种类 | Industrial Motion & Position Sensors |
| 额定电压 | 5 V |
| 系列 | AMS22S |
| 线性 | +/- 0.5 % |
| 单位重量 | 0.536164 oz |
| 封装 | Bulk |
| 容差 | 10 % |
| 温度范围 | - 40 C to + 125 C |
| RoHS | RoHS Compliant |
| No. of Channels | :1 |
| Rotational Speed Max | :120rpm |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| SVHC | :No SVHC (20-Jun-2013) |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +125°C |
| Rotation Mechanical Angle | :360° |
| Rotational Life Cycles | :50000000 |
| Sensor Supply Voltage | :4.5V DC to 5.5V DC |
| Supply Current Max | :20mA |
| Weight (kg) | 0.0182 |
| Tariff No. | 85334010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
