bourns

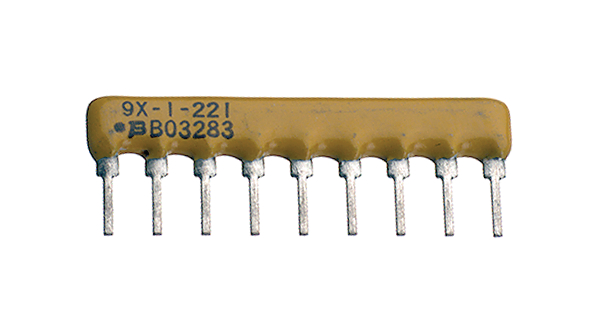

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装类型 | SIP |
| 电阻数 | 8 |
| 端子数 | 9 |
| 额定功率 | 1.13 W |
| 类型 | Network |
| 电路代号 | BUS |
| 技术 | Thick Film |
| 工作温度 | -55 to 125 °C |
| 电阻值 | 100 KOhm |
| 温度系数 | ±100 ppm/°C |
| 标准包装 | Bulk |
| 电阻值 | 100K |
| 欧盟RoHS指令 | Compliant |
| Power Rating per Resistor | 0.2 (1/5) |
| 产品厚度 | 2.49 |
| 温度系数 | ±100 |
| 端接类型 | Pin |
| 产品长度 | 22.81 |
| 产品高度 | 5.08 |
| 封装 | Bulk |
| 额定功率 | 1.13 |
| 容差 | 2% |
| 安装 | Through Hole |
| 机箱样式 | Conformal |
| 端子节距 | 2.54 |
| 封装/外壳 | SIP |
| 电阻（欧姆） | 100k |
| 每个元件的功率 | 200mW |
| 安装类型 | Through Hole |
| 电路类型 | Bussed |
| 供应商设备封装 | 9-SIP |
| 身高 | 0.200" (5.08mm) |
| 尺寸/尺寸 | 0.898" L x 0.098" W (22.81mm x 2.49mm) |
| 针脚数 | 9 |
| 其他名称 | 4609X101104LF |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 2.49mm |
| 外形尺寸 | 2.49 x 5.08 x 22.81mm |
| 长度 | 22.81mm |
| 最高工作温度 | +125°C |
| 最低工作温度 | -55°C |
| 每个电阻额定功率 | 0.2W |
| 电阻 | 100kΩ |
| 电阻值 | 100 kOhms |
| 工厂包装数量 | 100 |
| 产品种类 | Resistor Networks & Arrays |
| 工作温度范围 | - 55 C to + 125 C |
| 引线间距 | 2.49 mm |
| 表壳长度 | 5.08 mm |
| 每个元件的功率 | 1.13 W |
| 系列 | 4600X |
| 表壳宽度 | 3.43 mm |
| 产品类型 | Networks |
| RoHS | RoHS Compliant By Exemption |
| 工作温度范围 | -55C to 125C |
| 端子节距 | 2.54 mm |
| 弧度硬化 | No |
| 端子数 | 9 |
| 故障率 | Not Required |
| 公差（ +或 - ） | 2% |
| 安装风格 | Through Hole |
| 封装/外壳 | SIP |
| 军用标准 | Not Required |
| 产品长度（mm ） | 22.81 mm |
| 产品厚度（毫米） | 2.49 mm |
| 产品高度（mm ） | 5.08 mm |
| 额定功率每个电阻 | 1/5 W |
| 删除 | Compliant |
| 电阻公差 | :± 2% |
| Power Rating per Element | :200mW |
| 额定电压 | :100V |
| No. of Elements | :8 |
| Resistor Case Style | :SIP |
| SVHC | :No SVHC (20-Jun-2013) |
| 外部深度 | :5.08mm |
| External Length / Height | :22.81mm |
| 外宽 | :2.49mm |
| Full Power Rating Temperature | :70°C |
| 绝缘电阻 | :10Mohm |
| 引线长度 | :3.43mm |
| No. of Pins | :9 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Resistor Element Material | :Thick Film Array |
| Resistor Mounting | :Through Hole |
| Resistor Terminals | :Radial Leaded |
| Temperature Coeff Tracking + | :50ppm/°C |
| Temperature Coeff Tracking - | :50ppm/°C |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Tolerance + | :2% |
| Tolerance - | :2% |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.04 |
| Tariff No. | 85332100 |
| Brand/Series | 4600XSeries |
| 电路 | BussedNetwork |
| NumberofTerminals | 9 |
| PackageType | SIP |
| Power,Rating | 1.13W |
| Resistor network type | X |
| 案例 | SIP |
| Terminal pitch | 2.54mm |
| 功率 | 200mW |
| Multiplicity | 1 |
| Resistor characteristics | one pin of each resistor connected to common terminal |
| Gross weight | 0.44 g |
| Operating temperature | -55...125°C |
| Number of resistors | 8 |
| spg | 200 |
| Collective package [pcs] | 200 |
| Max operating voltage | 100V |
