bourns

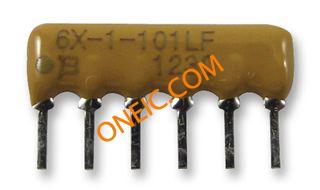

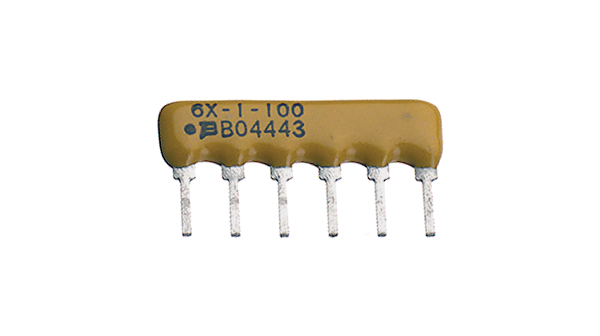

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装类型 | SIP |
| 电阻数 | 5 |
| 端子数 | 6 |
| 额定功率 | 3/4 W |
| 类型 | Network |
| 电路代号 | BUS |
| 技术 | Thick Film |
| 工作温度 | -55 to 125 °C |
| 电阻值 | 470 KOhm |
| 温度系数 | ±100 ppm/°C |
| 标准包装 | Bulk |
| 产品种类 | Resistor Networks & Arrays |
| RoHS | RoHS Compliant By Exemption |
| 产品类型 | Networks |
| 电路类型 | Bussed |
| 电阻值 | 470 kOhms |
| 容差 | 2 % |
| 针脚数 | 6 |
| 工作温度范围 | - 55 C to + 125 C |
| 引线间距 | 2.54 mm |
| 端接类型 | SIP |
| 封装 | Bulk |
| 封装/外壳 | SIP-6 |
| 每个元件的功率 | 0.75 W (3/4 W) |
| 系列 | 4600X |
| 工厂包装数量 | 100 |
| 额定电压 | 100 V |
| 电阻值 | 470K |
| 欧盟RoHS指令 | Compliant |
| Power Rating per Resistor | 0.2 (1/5) |
| 产品厚度 | 2.49 |
| 温度系数 | ±100 |
| 产品长度 | 15.19 |
| Product Height | 5.08 |
| 额定功率 | 0.75 (3/4) |
| 安装 | Through Hole |
| 机箱样式 | Conformal |
| Terminal Pitch | 2.54 |
| 封装/外壳 | SIP |
| 电阻（欧姆） | 470k |
| 每个元件的功率 | 200mW |
| 安装类型 | Through Hole |
| 供应商设备封装 | 6-SIP |
| 身高 | 0.200" (5.08mm) |
| 尺寸/尺寸 | 0.598" L x 0.098" W (15.19mm x 2.49mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 电阻 | :470kohm |
| 电阻公差 | :± 2% |
| Power Rating per Element | :200mW |
| No. of Elements | :5 |
| Resistor Case Style | :SIP |
| SVHC | :No SVHC (20-Jun-2013) |
| 外部深度 | :5.08mm |
| External Length / Height | :15.19mm |
| 外宽 | :2.49mm |
| Full Power Rating Temperature | :70°C |
| 绝缘电阻 | :10Mohm |
| 引线长度 | :3.43mm |
| No. of Pins | :6 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Resistor Element Material | :Thick Film Array |
| Resistor Mounting | :Through Hole |
| Resistor Terminals | :Radial Leaded |
| Temperature Coeff Tracking + | :50ppm/°C |
| Temperature Coeff Tracking - | :50ppm/°C |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Tolerance + | :2% |
| Tolerance - | :2% |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.001 |
| Tariff No. | 85332100 |
