bourns

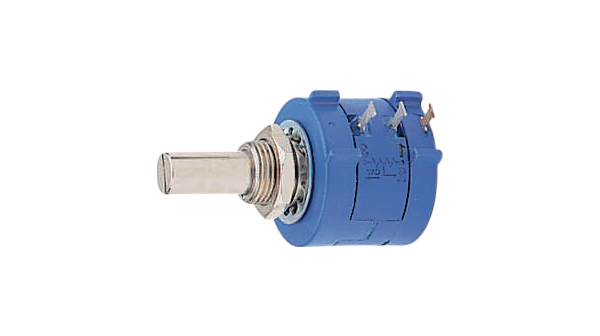

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Potentiometer |
| 电阻值 | 10 KOhm |
| 容差 | 5 % |
| 圈数 | 10(Elec)|10(Mech) Turns |
| 额定功率 | 2 W |
| 安装 | Panel Mount |
| 技术 | Wirewound |
| 工作温度 | -40 to 125 °C |
| 轴直径 | 6.34 mm |
| 标准包装 | Bulk |
| 电阻值 | 10K |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 22.23 |
| 温度系数 | ±50 |
| 端接类型 | Solder Lug |
| 产品长度 | 39.22 |
| 产品高度 | 26.66 |
| 额定功率 | 2 |
| 轴直径 | 6.34 |
| 圈数 | 10(Elec)|10(Mech) |
| 电阻（欧姆） | 10k |
| 促动器长度 | 0.812" (20.62mm) |
| 安装类型 | Panel Mount |
| 温度系数 | ±50ppm/°C |
| 尺寸 - 主体 | Round - 0.875" Dia x 0.732" L (22.22mm x 18.59mm) |
| 封装 | Bulk |
| 电阻材料 | Wirewound |
| 功率（瓦特） | 2W |
| 促动器直径 | 0.250" (6.35mm) |
| 调节型 | Side Adjustment |
| 执行器类型 | Slotted Shaft |
| 回转 | 3600° |
| 其他名称 | 3590S4103L |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1000 |
| 产品 | Precision Potentiometer |
| 产品种类 | Precision Potentiometers |
| 元素类型 | Wirewound |
| 轴类型 | Slotted |
| 电阻 | 10 kOhms |
| 安装风格 | Panel |
| 系列 | 3590 |
| RoHS | RoHS Compliant By Exemption |
| 工作温度范围 | -40C to 125C |
| 弧度硬化 | No |
| 故障率 | Not Required |
| 公差（ +或 - ） | 5% |
| 产品长度（mm ） | 39.22 mm |
| 产品厚度（毫米） | 22.23 mm |
| 产品高度（mm ） | 26.66 mm |
| 轴直径（mm ） | 6.34 mm |
| 产品直径（mm ） | Not Required mm |
| 军用标准 | Not Required |
| Track Resistance | :10kohm |
| Track Taper | :Linear |
| No. of Turns | :10 |
| 轴长度 | :20.63mm |
| 电阻公差 | :± 5% |
| Potentiometer Mounting | :Panel |
| No. of Gangs | :1 |
| Weight (kg) | 0.018 |
| Tariff No. | 85334010 |
| Angle,Mechanical | 3600° |
| Diameter,Shaft | 0.248" |
| DielectricStrength | 1500VAC |
| 外形尺寸 | 0.875"Dia×0.732"L |
| 线性 | ±0.25% |
| Material,Element | Wirewound |
| MountingType | Panel |
| NumberofTurns | 10 |
| Power,Rating | 2W |
| Resistance,Insulation | 1000Megohms |
| 分辨率 | 0.02% |
| RotationalLife | 1000000Revolutions |
| 锥度 | Linear |
| TemperatureCoefficient | ±50ppm/°C |
| Temperature,Operating,Maximum | +125°C |
| Temperature,Operating,Minimum | +1°C |
| 端子 | Lug |
| 扭矩 | 0.35N-cm |
| Shaft surface | smooth |
| Potentiometer features | precise |
| spg | 20 |
| 功率 | 2W |
| Potentiometer kind | multiturn |
| Temperature coefficient | 50ppm/°C |
| Operating temperature | -40...125°C |
| Body dimensions | Ø22.22 x 18.6mm |
| Multiplicity | 1 |
| Track material | wirewound |
| Gross weight | 0.02 kg |
| Shaft material | metal |
| 轴直径 | 6.35mm |
| 轴长度 | 12.6mm |
| Min insulation resistance | 1000MΩ |
| Thread length | 8mm |
| 密封 | IP65 |
| Linearity tolerance | ±0.25% |
| Potentiometer type | shaft |
| Characteristics | linear |
| Collective package [pcs] | 20 |
| Number of electrical turns | 10 |
