bourns

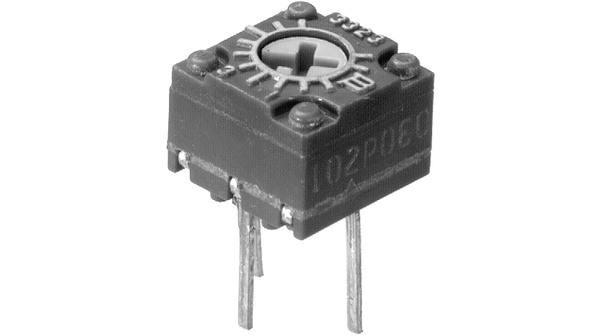

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Trimmer |
| 电阻值 | 2.2 KOhm |
| 容差 | 10 % |
| 圈数 | 1(Elec)|1(Mech) Turns |
| 额定功率 | 1/2 W |
| 安装 | Through Hole |
| 技术 | Cermet |
| 工作温度 | -55 to 125 °C |
| 轴直径 | 2.77 mm |
| 标准包装 | Rail / Tube |
| Coefficiente di temperatura | ±100 |
| TECNOLOGIA | Cermet |
| 符合UE | Compliant |
| Classificazione potenza | 0.5 (1/2) |
| TIPO | Trimmer |
| Numero di rotazioni | 1(Elec)|1(Mech) |
| Montaggio | Through Hole |
| 阶梯termine | Pin |
| Valore della resistenza | 2.2K |
| Confezione | Tube |
| Altezza prodotto | 4.7 |
| Profondità prodotto | 6.99 |
| Tolleranza | 10% |
| Diametro albero | 2.77 |
| Lunghezza del prodotto | 6.6 |
| 封装 | Tube |
| 电阻（欧姆） | 2.2k |
| 安装类型 | Through Hole |
| 端接类型 | PC Pin |
| 温度系数 | ±100ppm/°C |
| 尺寸/尺寸 | Square - 0.275" L x 0.260" W x 0.185" H (6.99mm x 6.60mm x 4.70mm) |
| 电阻材料 | Cermet |
| 功率（瓦特） | 0.5W, 1/2W |
| 调节型 | Top Adjustment |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 6.99mm |
| 外形尺寸 | 6.6 x 6.99 x 4.7mm |
| 身高 | 4.7mm |
| 长度 | 6.6mm |
| 最高工作温度 | +125°C |
| 最大阻力 | 2.2kΩ |
| 最低工作温度 | -55°C |
| 工厂包装数量 | 50 |
| 产品 | Trimmer Resistors - Single Turn |
| 产品种类 | Trimmer Resistors - Through Hole |
| 工作温度范围 | - 55 C to + 125 C |
| 元素类型 | Cermet |
| 电阻 | 2.2 kOhms |
| 产品类型 | Single Turn |
| 调整 | Top Crossed |
| RoHS | RoHS Compliant |
| Track Resistance | :2.2kohm |
| No. of Turns | :1 |
| 电阻公差 | :± 10% |
| Potentiometer Mounting | :Through Hole |
| SVHC | :No SVHC (16-Dec-2013) |
| Weight (kg) | 0.00057 |
| Tariff No. | 85334010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
