bourns

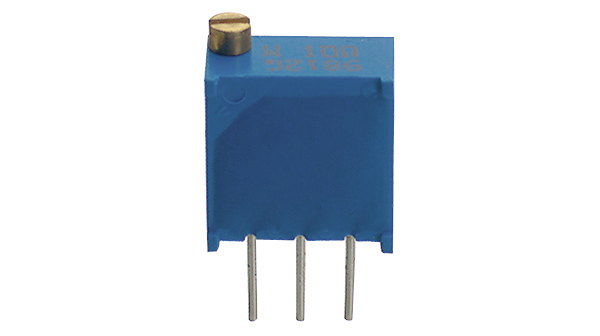

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Trimmer |
| 电阻值 | 200 Ohm |
| 容差 | 10 % |
| 圈数 | 25(Elec) Turns |
| 额定功率 | 1/2 W |
| 安装 | Through Hole |
| 技术 | Cermet |
| 工作温度 | -55 to 125 °C |
| 轴直径 | 2.29 mm |
| 标准包装 | Bulk |
| 产品种类 | Trimmer Resistors - Through Hole |
| RoHS | RoHS Compliant By Exemption |
| 产品 | Trimmers |
| 产品类型 | Multi-Turn |
| 锥度 | Linear |
| 电阻 | 200 Ohms |
| 额定电压 | 300 V |
| 端接类型 | Radial |
| 温度系数 | 100 PPM / C |
| 调整 | Top Crossed |
| 外形尺寸 | 9.53 mm W x 10.03 mm L |
| 元素类型 | Cermet |
| 工作温度范围 | - 55 C to + 125 C |
| 封装 | Tube |
| 系列 | 3299 |
| 工厂包装数量 | 50 |
| 电阻（欧姆） | 200 |
| 安装类型 | Through Hole |
| 尺寸/尺寸 | Square - 0.395" L x 0.240" W x 0.375" H (10.03mm x 6.10mm x 9.53mm) |
| 电阻材料 | Cermet |
| 功率（瓦特） | 0.5W, 1/2W |
| 调节型 | Top Adjustment |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 6.1mm |
| 身高 | 11.55mm |
| 长度 | 9.53mm |
| 最高工作温度 | +125°C |
| 最大阻力 | 200Ω |
| 最低工作温度 | -55°C |
| Track Resistance | :200ohm |
| No. of Turns | :25 |
| 电阻公差 | :± 10% |
| Potentiometer Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Contact Resistance Variation + | :1% |
| End Resistance | :2ohm |
| External Length / Height | :10.3mm |
| Full Power Rating Temperature | :70°C |
| 引线直径 | :0.51mm |
| MSL | :- |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Proof Voltage | :900V |
| Resistor Element Material | :Cermet |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| 终端类型 | :PCB Terminals |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| Voltage Rating V DC | :300V |
| Weight (kg) | 0.00123 |
| Tariff No. | 85334010 |
| DielectricStrength | 900VAC |
| Material,Element | Cermet |
| MountingType | PCB |
| NumberofTurns | 25 |
| Power,Rating | 0.5W |
| Resistance,Insulation | 1000Megohms |
| 分辨率 | Infinite |
| RotationalLife | 200Cycles |
| TemperatureCoefficient | ±100ppm/°C |
| Temperature,Operating,Maximum | +125°C |
| Temperature,Operating,Minimum | -55°C |
| 端子 | SolderablePins |
| 扭矩 | 3Oz./in. |
| Potentiometer standard | 3/8" |
| 功率 | 500mW |
| Potentiometer type | mounting |
| Multiplicity | 1 |
| Track material | cermet |
| Potentiometer kind | multiturn |
| Gross weight | 1.4 g |
| Operating temperature | -55...125°C |
| Temperature coefficient | 100ppm/°C |
| Characteristics | linear |
| Body dimensions | 10 x 9.5 x 6.1mm |
| Terminal pitch | 2.54mm |
| spg | 50 |
| Collective package [pcs] | 50 |
| Number of electrical turns | 25 |
| Max operating voltage | 300V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
