Bourns

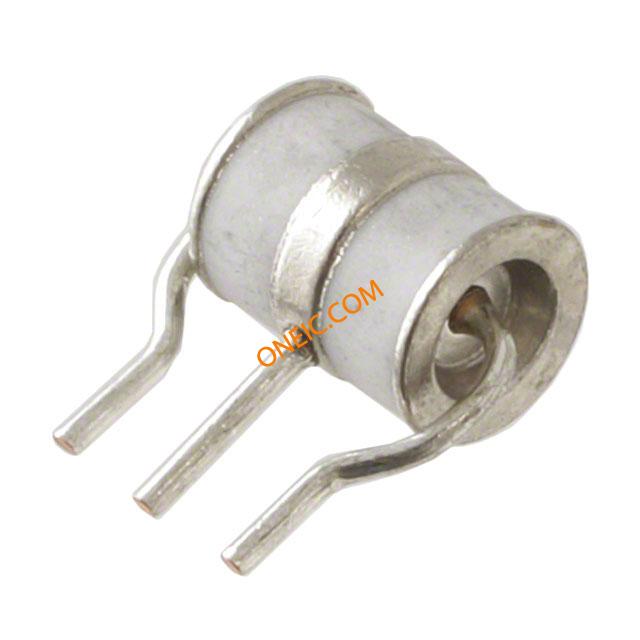

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 脉冲放电电流（压8/20us ） | 10kA |
| 安装类型 | Through Hole |
| 故障短路 | Yes |
| 极数 | 3 |
| 电压 - 击穿（标称） | 145V |
| 封装 | Tray |
| 标准包装 | 500 |
| 容差 | ±20% |
| 电流 - AC放电（标称） | 20A |
| 封装/外壳 | Axial Cylinder, 3 Lead (Radial Bend) |
| 产品种类 | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors |
| 外形尺寸 | 8 mm D x 10 mm L |
| 系列 | 2046 |
| 端接类型 | Axial |
| 直流击穿电压（标称） | 145 V |
| 电极的数目 | 3 |
| 安装风格 | Through Hole |
| 峰值脉冲电流 | 20 kA |
| 故障安全保护Y / N | N |
| 技术 | 3 Electrode Gas Discharge Tube |
| RoHS | RoHS Compliant |
| DC Breakover Voltage | :145V |
| 脉冲放电电流 | :20kA |
| Impulse Sparkover Voltage | :700V |
| GDT Case Style | :Radial Leaded |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.0025 |
| Tariff No. | 85354000 |
| Impulse Discharge Current (8/20µs) | 10kA |
| 封装/外壳 | Axial Cylinder, 3 Lead (Radial Bend) |
| RoHS指令 | Lead free / RoHS Compliant |
| Brand/Series | 2046Series |
| 电容 | 2pF |
| Current,ACFollow | 1A |
| Current,Surge | 20kA |
| InsulationResistance | 10GOhms |
| MountingType | ThroughHole |
| 包装 | 0810 |
| PackageType | 0810 |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -30°C |
| Voltage,DCHoldover | 52V |
| Voltage,DCSparkover | 145V |
| Voltage,Rating | 145V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
