LCR COMPONENTS

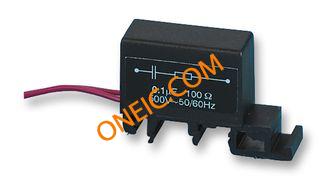

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 系列 | :- |
| 抑制器类型 | :Mains |
| 插座类型 | :- |
| 额定电压 | :500Vrms |
| SVHC | :No SVHC (20-Jun-2013) |
| AC Power | :4W |
| 电容 | :0.1µF |
| Capacitance Tolerance + | :10% |
| Capacitance Tolerance - | :-10% |
| 连接器类型 | :Wire |
| Control Voltage AC Max | :500V |
| 外部深度 | :40mm |
| External Length / Height | :43mm |
| 外宽 | :19mm |
| 绝缘电阻 | :100Mohm |
| No. of Phases | :Single |
| Nom Operating Voltage | :500V |
| Operating Frequency Max | :60Hz |
| Operating Frequency Min | :50Hz |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| 电阻 | :100ohm |
| Resistance Tolerance + | :5% |
| Resistance Tolerance - | :5% |
| 标准 | :BS5584, BS5825 |
| Weight (kg) | 0.04 |
| Tariff No. | 85322900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
