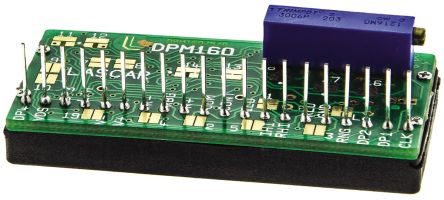

Lascar
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 模拟效果 | Digits Only |
| 电流类型 | DC |
| 开孔高度 | 27mm |
| 开孔宽度 | 57mm |
| 深度 | 8.2mm |
| 显示器类型 | LCD |
| 最高温度 | +50°C |
| 仪表精度 | ±1 % |
| 最低气温 | 0°C |
| 数字位数 | 4.5 |
| No. of Digits / Alpha | :4-1/2 |
| Meter Function | :DC Millivolts / DC Volts |
| Meter Range | :0mV to 200mV, 0V to 2V |
| 数字高度 | :12.5mm |
| Panel Cutout Height | :27mm |
| Panel Cutout Width | :57mm |
| Supply Voltage Range | :6V DC to 14V DC |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :50°C |
| SVHC | :No SVHC (20-Jun-2013) |
| 准确性 | :0.005% + 1 digit |
| Bezel Height | :30mm |
| Bezel Width | :60mm |
| 字符大小为5mm ×7毫米 | :12.5mm |
| 显示屏尺寸 | :60mm x 30mm |
| 显示技术 | :LCD |
| 外部深度 | :6.7mm |
| External Length / Height | :24.8mm |
| 外宽 | :52mm |
| Full Scale Reading | :200mV |
| 身高 | :24.8mm |
| Input Leakage Current | :1pA,10pA |
| 线性 | :± 1 digit |
| No. of Pins | :20 |
| 工作温度范围 | :0°C to +50°C |
| Panel Cut-out Depth | :27mm |
| 插座类型 | :SIL |
| 电源电流 | :1mA |
| Supply Voltage DC Max | :14V |
| Supply Voltage DC Min | :6V |
| Supply Voltage Max | :20V |
| Supply Voltage Min | :-20V |
| Temperature Stability + @ | :30ppm/C |
| Weight (kg) | 0.026 |
| Tariff No. | 85312020 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
