infineon technologies

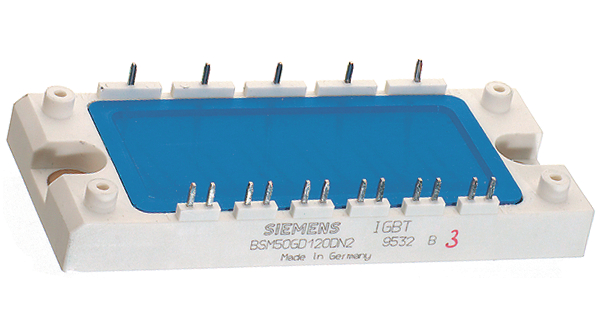

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 17EconoPACK 2A |
| 配置 | Hex |
| 引脚数 | 17 |
| 最大集电极发射极电压 | 1200 V |
| 最大连续集电极电流 | 35 A |
| 最大栅极发射极电压 | ±20 V |
| 安装 | Screw |
| 外形尺寸 | 107.5 x 45 x 17mm |
| 身高 | 17mm |
| 长度 | 107.5mm |
| 最大功率耗散 | 200 W |
| 安装类型 | Through Hole |
| 包装类型 | ECONOPACK 2 |
| 宽度 | 45mm |
| RoHS指令 | Compliant |
| 栅极 - 射极漏泄电流 | 180 nA |
| 产品 | IGBT Silicon Modules |
| 产品种类 | IGBT Modules |
| 工厂包装数量 | 500 |
| 连续集电极电流在25 C | 35 A |
| 集电极 - 发射极最大电压VCEO | 1200 V |
| 安装风格 | Screw |
| 功率耗散 | 200 W |
| 最低工作温度 | - 40 C |
| 封装/外壳 | EconoPACK 2A |
| 集电极 - 发射极饱和电压 | 2.5 V |
| 最高工作温度 | + 150 C |
| RoHS | RoHS Compliant |
| 晶体管极性 | :N Channel |
| DC Collector Current | :35A |
| Collector Emitter Voltage Vces | :3V |
| 功耗 | :200W |
| Collector Emitter Voltage V(br)ceo | :1.2kV |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| Transistor Case Style | :EconoPACK |
| No. of Pins | :17 |
| Current Ic Continuous a Max | :25A |
| Current Temperature | :80°C |
| Full Power Rating Temperature | :25°C |
| Module Configuration | :Six |
| No. of Transistors | :6 |
| 工作温度范围 | :-40°C to +125°C |
| Power Dissipation Max | :200W |
| Pulsed Current Icm | :50A |
| 端接类型 | :Solder |
| Voltage Vce Sat Typ | :2.5V |
| Voltage Vces | :1.2kV |
| Weight (kg) | 0.18 |
| Tariff No. | 85415000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
