GW INSTEK

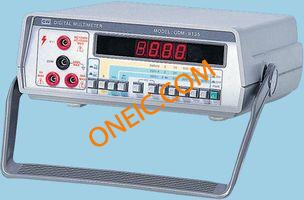

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| DMM Type | :Bench |
| Voltage Measuring Range DC | :200mV, 2V, 20V, 200V, 1kV |
| Voltage Measuring Range AC | :200mV to 1kV |
| Current Measuring Range DC | :200µA to 20A |
| Current Measuring Range AC | :200µA to 20A |
| Resistance Measuring Range | :200ohm to 20Mohm |
| Frequency Measuring Range | :- |
| Capacitance Measuring Range | :- |
| Temperature Measuring Range | :- |
| No. of Digits | :3.5 |
| DMM Response Type | :- |
| DMM Functions | :AC/DC Current, AC/DC Voltage, Continuity, Resistance |
| 测距 | :Auto |
| 显示计数 | :1999 |
| 插头类型 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Calibration Code | :4 |
| Current Range AC | :200µA to 20A |
| Current Range DC | :200µA to 20A |
| 外部深度 | :280mm |
| External Length / Height | :95mm |
| 外宽 | :230mm |
| No. of Digits / Alpha | :3-1/2 |
| Weight (kg) | 0.8 |
| Tariff No. | 90303100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
