Honeywell

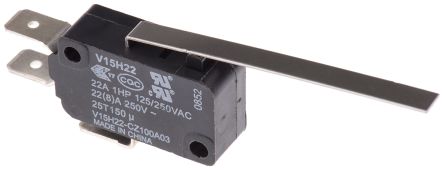

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器类型 | Long Leaf Lever |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 22 A @ 250 V ac |
| AC contacts rating (at resistance load) | 22 A / 250 VAC |
| Leads | 6.3x0.8mm connectors |
| Switches features | with lever |
| Switching torque | 0.98N |
| Mechanical durability | 5000000cycles |
| Multiplicity | 1 |
| Contacts configuration | SPDT |
| Gross weight | 8.99 g |
| Operating temperature | -25...70°C |
| Panel cutout diameter | 3.1mm |
| Stable positions number | 1-position |
| Body dimensions | 27.8 x 10.3 x 15.9mm |
| 密封 | IP40 |
| Switching method | ON-(ON) |
| Lever length | 51.5mm |
| Switch type | microswitch |
| 开关类型 | MICRO SWITCH⢠Standard 15,9 mm H x 10,30 mm W x 27,80 mm L [0.63 in H x 0.41 in W x 1.09 in L] |
| 密封 | No |
| 额定电流 | 22 A |
| 电路 | SPDT |
| 执行器 | Long Straight Lever |
| 端子 | Quick Connect |
| 工作温度 | -25 °C to 150 °C [-13 °F to 300 °F] |
| 电压 | 125 Vac/250 Vac |
| 促动器长度 | 59,5 mm [2.34 in] |
| 触点类型 | Silver Cadmium Oxide |
| 操作力（OF） | 100 gf max. |
| 释放力 | 25 gf min. |
| 预行程（ PT ） | 6,4 mm [0.252 in] max. |
| 超程（ OT ） | 2,6 mm [0.102 in] min. |
| 差分旅游（ DT ） | 2,4 mm [0.094 in] max. |
| 动作位置（ OP ） | 15,3 mm ±3,0 mm [0.602 ±0.118 in] |
| 材质 | Plastic |
| 外壳材料 | PBT Polyester Thermoplastic |
| Expected Mechanical Life | 5 Million |
| 绝缘强度 | 1500 Vac (50 Hz/60 Hz, 1 min.) |
| Electrical Service Life | 6000 or 50000 operations minimum |
| Electrical Operating Frequency | 10 to 30 Operations per Minute |
| 代理审批和标准 | UL, cUL, CQC, ENEC |
| 安装螺丝尺寸 | 3 mm |
| 安装中心 | 22,2 mm [0.88 in] |
| 紧固扭矩 | 0,56 N m [5.0 in lb] |
| 重量 | 5 g |
| 包装高度 | 15,9 mm [0.63 in] |
| 包装宽度 | 10,3 mm [0.40 in] |
| 包装长度 | 27,8 mm [1.09 in] |
| 评论 | V-Basic Standard V15 Series amp range: 5 A to 26 A; UL 1054, IEC 61058-1; UL: E312400; c-UL: E312400 |
| UNSPSC代码 | 39122209 |
| UNSPSC商品 | 39122209 Snap switches |
| 系列名称 | V-Basic Standard V15 |
| 执行器类型 | 长簧片杠杆 |
| 触点额定电流 | 22 A @ 250 V 交流 |
| 触点配置 | 单刀双掷 - 常开/常闭 |
