Honeywell Sensing and Control

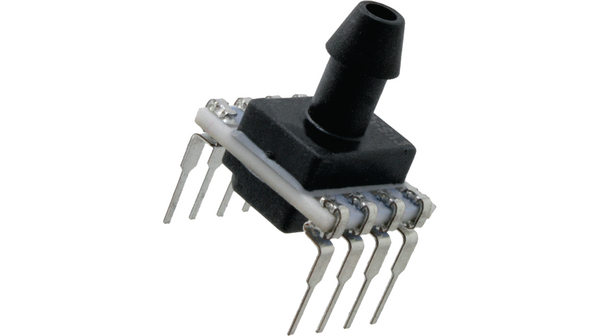

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 端口尺寸 | Male, 0.194" (4.9276mm) Tube |
| 输出 | Analog |
| 端接类型 | PC Pin |
| 压力类型 | Gauge |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 3 V ~ 3.6 V |
| 标准包装 | 1 |
| 工作压力 | 15 PSI |
| 准确性 | ±0.25% |
| 其他名称 | 480-3337 |
| 封装/外壳 | 8-DIP Module |
| 最低工作温度 | - 20 C |
| 系列 | SSC |
| 端口类型 | Single Axial Barbed |
| 输出类型 | Analog |
| 安装风格 | Through Hole |
| 电源电压 - 最大 | 3.3 V |
| 商品名 | TruStability |
| 封装/外壳 | DIP |
| 最高工作温度 | + 85 C |
| 电源电流 | 1.6 mA |
| RoHS | RoHS Compliant |
| 标准包装 | 20 |
| BodyStyle | Silicon |
| Brand/Series | TruStabilitySeries |
| Current,Supply | 2.1mA |
| 功能 | PiezoresistiveSiliconPressureSensor |
| Material,Housing | SiliconCeramic |
| 安装 | IntegratedCircuit |
| MountingType | DIP |
| NumberofPoles | singleaxialbarbedport |
| OutputType | Voltage |
| 包装 | DIP-4 |
| PrimaryType | Pressure |
| Range,Measurement | 1-150psi |
| SensingRange | 15psi |
| SensorType | Pressure |
| SpecialFeatures | LiquidMediaOption |
| 标准 | ISO9001 |
| 技术 | Silicon |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Range | -40to85°C |
| 端子 | ThroughHole |
| 类型 | Pressure |
| Voltage,Range | 3-3.6V |
| Voltage,Rating | 5VDC |
| Voltage,Supply | 3-3.6VDC |
| RoHS指令 | RoHS Compliant Part |
| 案例 | DIP |
| Sensor type | pressure |
| Multiplicity | 1 |
| Operation mode | referential |
| Gross weight | 1 g |
| Operating temperature | -20...85°C |
| 电源电压 | 3...3.6V DC, 3.3V DC |
| Output configuration | analogue |
| Measuring range | 0...15psi |
| 电源 | 3...3.6 VDC |
| Pressure type | Gauge |
| 输出电压 | 2.93 V |
| Supply current Icc | 2.1 |
| Pressure measurement range | 0...15 psi |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
