Honeywell Sensing and Control

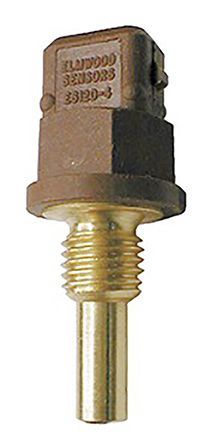

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 子类别 | Thermistor |
| 交货期 | 70 Days |
| 工作温度 | -40°C ~ 150°C |
| 电阻（欧姆） 25 °C | 2k |
| 封装 | Tray |
| 标准包装 | 100 |
| 电阻公差 | ±5% |
| 封装/外壳 | Probe |
| RoHS指令 | Lead free / RoHS Compliant |
| 功能 | Immersion Temperature Sensing |
| 产品 | Temperature Sensors |
| 电阻 | 2 kOhms |
| 温度范围 | - 40 C to + 150 C |
| RoHS | RoHS Compliant |
| 热敏电阻类型 | NTC |
| 温度传感类型 | Immersion |
| 容差 | ±5.0% |
| 准确性 | 20 °C [68 °F] |
| BETA (25/85) | 3468 |
| R-T Curve | -40 °C to 150 °C [-40 °F to 302 °F] |
| 外壳材料 | Threaded body (1/8 PTF 27 TPI) |
| Mounting Method/Mechanical Interface | Overmolded connector/Delphi 90° METRI-PACK 150 Series |
| Electrical Interface/Connector Type | 15.0 s |
| Time Constant in Water at 0914 m/s [3 ft/s] | 6 mW/°C |
| Dissipation Constant in Water | Global |
| 热敏电阻类型 | KTY, NTC |
| 精确度 | 20 °C |
| 电阻值 | 2 kΩ |
| 材料 | 黄铜 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
