Honeywell

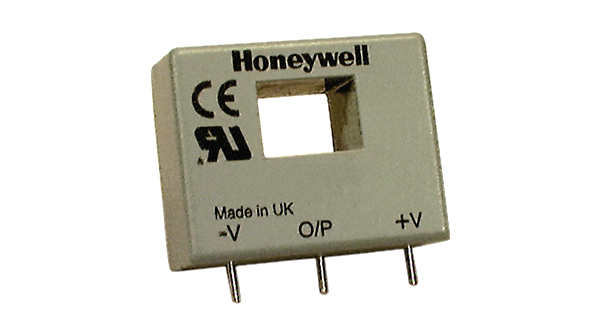

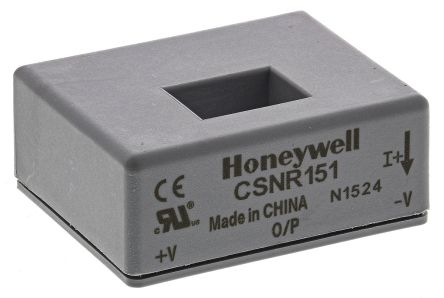

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Board Mount Current Sensors |
| RoHS | RoHS Compliant |
| 额定电流 | +/- 200 A |
| 电源电压 | +/- 12 VDC to +/- 15 VDC |
| 工作温度 | - 40 C to + 85 C |
| 准确性 | +/- 0.5 % |
| 类型 | Closed Loop Linear |
| Typical Operating Supply Voltage | 15 |
| Operating Frequency | 150(Max) |
| 最高工作温度 | 70 |
| 模块/集成电路分类 | Module |
| 感应电流类型 | AC|DC |
| 欧盟RoHS指令 | Compliant |
| 准确性 | ±0.5 |
| Maximum Sensing Current | ±200 |
| Typical Response Time | 1(Max) |
| 最低工作温度 | 0 |
| 引脚数 | 3 |
| eurohs | Compliant |
| 最小测量阻抗 | 10 Ohm |
| 安装 | PCB on 3 pins |
| 外壳材料 | Glass-filled PBT (UL94-V0) |
| 线圈匝数 | 2000 |
| 最大连续电流 | ±200 A |
| 封装形式 | Thru Hole PCB Mount |
| UNSPSC商品 | 411121 Transducers |
| 输出类型 | Current |
| 额定动作电流@ 25 °C | 125 A RMS |
| 感应电流范围 | ±200 A |
| 工作温度范围 | -40 °C to 85 °C [-40 °F to 185 °F] |
| 引脚风格 | Center |
| Coil Resistance @ 25 °C | 100 Ohm |
| 存储温度范围 | -40 °C to 90 °C [-40 °F to 194 °F] |
| 最大测量电阻 | 100 Ohm |
| 系列名称 | CSN |
| 输出标称 | 62.5 mA |
| UNSPSC代码 | 411121 |
| 感应电流类型 | ac or dc |
| 电源电流 | ±14 mA + output |
| 子类别 | Current Sensors |
| 交货期 | 42 Days |
| 封装 | Bulk |
| 传感器类型 | Closed Loop |
| 安装类型 | Through Hole |
| 输出 | Current |
| 极化方式 | Bidirectional |
| 电流 - 电源 | 14mA |
| 电压 - 电源 | ±12 V ~ 15V |
| 标准包装 | 30 |
| 电流 - 感应 | 200A |
| 响应时间 | 0.5µs |
| 封装/外壳 | Module, Single Pass Through |
| RoHS指令 | Lead free / RoHS Compliant |
| Frequency Bandwidth | DC → 150 kHz |
| Input Current Range | 0 → 200 A |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 输出电流范围 | 62.5mA |
| 整体深度 | 14.45mm |
| 总高度 | 29.6mm |
| 总宽 | 36.6mm |
| 感应器/传感器类型 | Closed Loop |
| BodyStyle | Rectangular |
| Brand/Series | CSN |
| Current,Switching | 62.5mA |
| 功能 | Current |
| MountingType | PCB |
| OutputType | Current |
| 包装 | Rectangular |
| PrimaryType | Current |
| Range,Measurement | 200A |
| 技术 | HallEffect |
| 端子 | Solder |
| Voltage,Supply | 15VDC |
| 产品类型 | Closed Loop Linear |
| 包装类型 | Thru Hole PCB Mount |
| Continuous Current | ±200 A |
| Operate Current | 125 A RMS @ 25 °C |
| Offset Current | |
| Offset Current Drift | |
| 线圈电阻 | 100 Ohm |
| 储存温度 | -40 °C to 90 °C [-40 °F to 194 °F] |
| Measuring Resistance | 10 Ohm min., 100 Ohm max. |
| 评论 | Larger thru hole. |
| 供电电流 | 14 mA |
| Operating temperature | -40...+85 °C |
| 电源 | ± 12...± 15 |
| Sensed current range | ± 200 |
| 传感器类型 | 闭合环路霍尔效应 |
| 输出电流范围 | 62.5mA |
| 变压器类型 | 闭路霍尔效应 |
| 总体深度 | 14.45mm |
| 最高工作温度 | +85°C |
| 电源电压 | 12 → 15 V 直流 |
| 安装类型 | PCB（印刷电路板）安装 |
| 最低工作温度 | -40°C |
| 总体宽度 | 36.6mm |
| 频率带宽 | 直流 → 150 kHz |
| 总体高度 | 29.6mm |
| 精确度 | ±0.5% |
| 输入电流范围 | 0 → 200 A |
