Honeywell

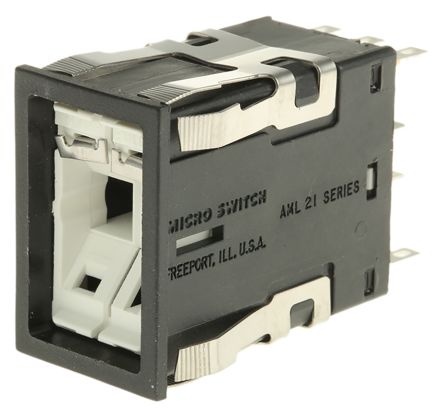

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Pushbutton Switches |
| RoHS | RoHS Compliant |
| 触点形式 | DPDT |
| 开关功能 | Alternate |
| 额定电流 | 3 A |
| 电压额定值AC | 125 V |
| 直流电额定电压 | 24 V |
| 安装风格 | Snap In |
| 照明 | Illuminated |
| 端接类型 | Solder |
| 执行器 | Rectangular |
| LEDLampNeon电压 | No Lamp Installed |
| 系列名称 | AML21 |
| 安装 | Snap-in Panel |
| AmpereVoltage范围（电阻性负载） | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac |
| UNSPSC商品 | 30211913 Push button switches |
| 房屋类型 | Rectangular |
| UNSPSC代码 | 30211913 |
| 电路 | DPDT |
| 端子 | .110 x .020 (Solder or Quick-Connect) |
| 光源类型 | Lighted, 2 Incandescent Lamp |
| 封装 | Bulk |
| 面板开孔尺寸 | Rectangular - 28.98mm x 19.05mm |
| 安装类型 | Panel Mount, Snap-In |
| 额定电压 - AC | 125V |
| 类型 | Standard, Illuminated |
| 电气寿命 | 25,000 Cycles |
| 发光类型，颜色 | Incandescent |
| 执行器类型 | Rectangular, Button (Not Included) |
| 标准包装 | 1 |
| 额定电压 - DC | 24V |
| 机械寿命 | 25,000 Cycles |
| 其他名称 | 480-2229 |
| 电路 | DPDT |
| RoHS指令 | Lead free / RoHS Compliant |
| 联系配置 | DP4T |
| 触点材料 | Silver |
| 开孔尺寸高度 | 19mm |
| 开孔尺寸尺寸 | 29 x 19mm |
| 面板切割宽度 | 29mm |
| 开关操作 | Alternate |
| 终端类型 | Solder, Tab |
| 照明颜色 | Multiple |
| ActuatorType | Rectangle |
| ContactForm | DPDT |
| Current,Rating | 3Amps |
| Material,Contact | Silver |
| MountingHoleSize | 18.92mm |
| MountingType | Snap-In |
| NumberofPoles | 2 |
| NumberofPositions | 2 |
| 操作 | Alternate |
| 标准 | ULRecognized,CSACertified |
| Voltage,Rating | 250VAC |
| 产品类型 | MICRO SWITCH⢠Pushbutton |
| 动作 | Alternate action |
| Ampere/Voltage Range (Resistive Load) | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac |
| LED/Lamp/Neon Voltage | No Lamp Installed |
| 评论 | use AML51 button |
| 开关操作 | 备用 |
| 面板切口高度 | 19mm |
| 安装类型 | 面板安装 |
| 触点材料 | 银 |
| 面板切口宽度 | 29mm |
| 触点配置 | DP4T |
| 执行器类型 | 按钮式 |
| Board Level Components | Y |
| 触点额定电流 | 2 A @ 250 V 交流 |
| 接端类型 | 焊料，翼片 |
| 面板切口大小 | 29 x 19mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
