Honeywell

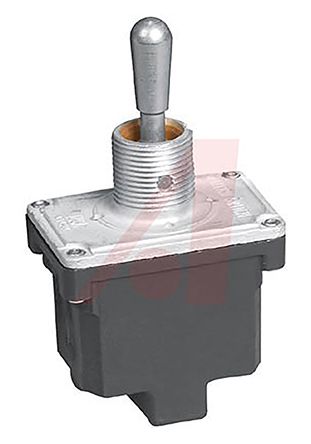

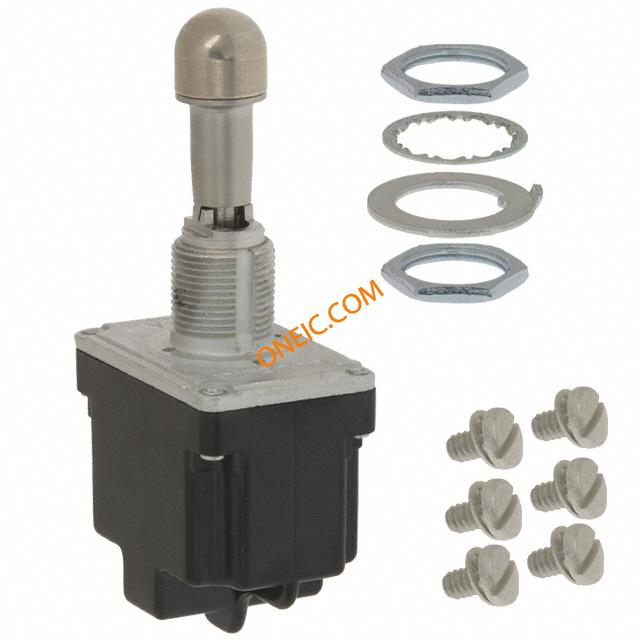

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Toggle Switches |
| RoHS | RoHS Compliant |
| 触点形式 | DPDT |
| 开关功能 | ON - OFF - ON |
| 端接类型 | Screw |
| 安装风格 | Panel |
| 照明 | Non-Illuminated |
| 执行器 | Lever |
| 衬套尺寸 | 15/32-32 |
| 执行器风格 | Round Lever |
| 产品长度 | 33.4 |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 22.6 |
| 极掷配置 | DPDT |
| 安装 | Panel Mount with Threads |
| 最大交流电压额定值 | 277 |
| Maximum Current Rating | 20@28VDC |
| 最大直流额定电压 | 250 |
| 交换机配置 | ON OFF ON |
| 产品高度 | 63.6 |
| 终端类型 | Screw |
| 评论 | Thermoplastic case |
| CircuitryOperating动作 | 127280 |
| 杠杆类型 | Standard |
| 系列名称 | NT |
| AmpereVoltage范围（电阻性负载） | 0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 1 |
| UNSPSC商品 | 30211908 Toggle switches |
| 电路 | DPDT |
| UNSPSC代码 | 30211908 |
| 端子 | Screw |
| ULCSA等级代码 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" |
| 电路 | DPDT |
| 额定电流 | 15A (AC) |
| 面板开孔尺寸 | Circular - 12.40mm Dia |
| 安装类型 | Panel Mount |
| 额定电压 - AC | 125V |
| 封装 | Bulk |
| 工作温度 | -40°C ~ 71°C |
| 执行器类型 | Standard Round |
| 标准包装 | 1 |
| 防护等级 | IP67/68 - Dust Tight, Waterproof |
| 衬套螺纹 | 15/32-32 |
| 促动器长度 | 17.02mm |
| 产品特点 | Sealed |
| RoHS指令 | Lead free / RoHS Compliant |
| ActuatorType | Bat |
| 应用 | Usedinconstructionequipment,agricultureequipment,materialhandlingequipment,factoryfloorcontrolunitsandmachinetoolequipmentmanufacturers. |
| ContactForm | DPDT |
| Current,Rating | 15Amps |
| Material,Body | Thermoplastic |
| MountingType | Panel |
| NumberofPoles | 2 |
| NumberofPositions | 3 |
| 操作 | OnOffOn |
| 类型 | Toggle |
| Voltage,Rating | 115VAC |
| 产品类型 | MICRO SWITCH⢠Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.75 A at 115 Vdc|0.5 A at 250 Vdc|0.5 A to 15 A at 0.5 Vac to 277 Vac |
| 动作 | 3 position |
| Circuitry/Operating action | Bushing 15/32 in |
| UL/CSA | Thermoplastic case |
| 面板切口直径 | 12.4mm |
| 开关操作 | 开 - 关 - 开 |
| 执行器长度 | 17.3mm |
| 最高工作温度 | +71°C |
| 触点配置 | 双刀双掷 |
| 工作温度范围 | -40 → +71°C |
| 最低工作温度 | -40°C |
| Board Level Components | Y |
| 触点额定电流 | 20 A @ 28 V 直流 |
| 接端类型 | 螺丝 |
| 面板切口大小 | 12.4 (Dia.)mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
