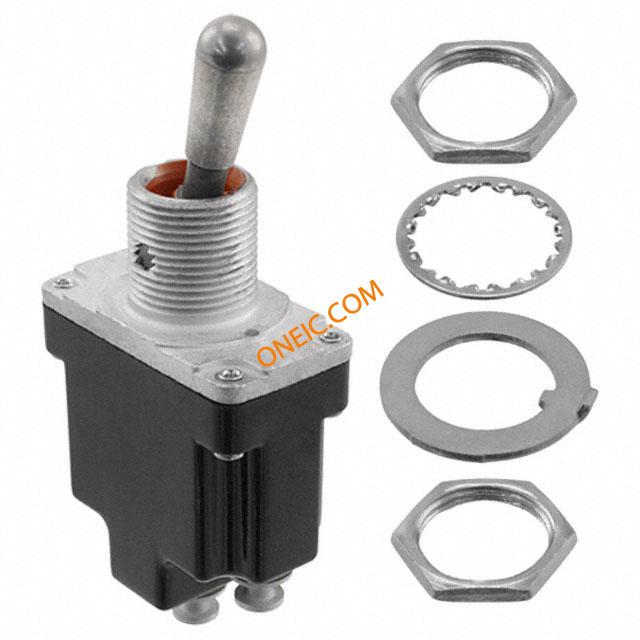

图片仅供参考,产品以实物为准
| 规格书 |
 11TL1 Series |
| Rohs | Lead free / RoHS Compliant |
| 标准包装 | 1 |
| 线路 | SPDT |
| Switch 功能的 | On-On |
| Contact Rating @ 电压 | 15A @ 125VAC |
| Actuator 型 | Standard Round |
| Actuator 长度 | 17.27mm |
| 照明 | Non-Illuminated |
| 安装类型 | Panel Mount |
| 终止风格 | Solder Turret |
| 轴衬螺纹 | 15/32-32 |
| 包装材料 | Bulk |
| RoHS | In Transition |
| 触点形式 | SPDT |
| 额定电流 | 20 A |
| 电压额定值AC | 277 V |
| 直流电额定电压 | 250 V |
| 端接类型 | Solder |
| 安装风格 | Panel |
| 端子密封 | Sealed |
| 照明 | Non-Illuminated |
| 执行器 | Lever |
| 衬套尺寸 | 15/32-32 |
| 零件号别名 | MS27734-23 |
| 评论 | Single turret solder lug termination |
| CircuitryOperating动作 | 124459 |
| 杠杆类型 | Standard |
| 系列名称 | TL |
| 安装 | Bushing 15/32 in |
| AmpereVoltage范围（电阻性负载） | 0.75 A at 115 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 1 |
| UNSPSC商品 | 30211908 Toggle switches |
| 电路 | SPDT |
| UNSPSC代码 | 30211908 |
| 端子 | Solder |
| ULCSA等级代码 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" |
| 军用产品编号 | MS27734-23 |
| 电路 | SPDT |
| 开关功能 | On-On |
| 面板开孔尺寸 | Circular - 12.40mm Dia |
| 安装类型 | Panel Mount |
| 额定电压 - AC | 125V |
| 封装 | Bulk |
| 工作温度 | -65°C ~ 71°C |
| 执行器类型 | Standard Round |
| 标准包装 | 1 |
| 防护等级 | Environment Proof |
| 衬套螺纹 | 15/32-32 |
| 执行器材质 | Nickel Plated |
| 促动器长度 | 17.27mm |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品类型 | MICRO SWITCH⢠Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 15 A at 0.5 Vac to 277 Vac |
| 动作 | 2 position |
| Circuitry/Operating action | Bushing 15/32 in |
| MIL Spec Number | Standard |
| UL/CSA | Single turret solder lug termination |
