Fischer Elektronik

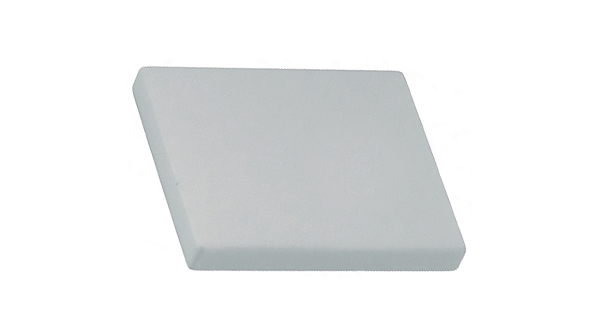

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Thermal conductivity | 25W/mK |
| 应用 | TO247 |
| Multiplicity | 1 |
| Pad volume resistance | 100TΩ/cm |
| 厚度 | 1mm |
| Gross weight | 2 g |
| 宽度 | 23mm |
| 长度 | 20mm |
| Electrical insulation | 10kV/mm |
| Type of thermally conductive pad | ceramic |
| Collective package [pcs] | 200 |
| spg | 200 |
| 颜色 | white |
| 材质 | Al2 O3 - ceramics |
| Dielectric strength | 10 kV/mm |
| Material thickness | 1 |
| Thermal resistance | 0.3 |
