  4. DIN 41612
  5. PCN10C-50S-2.54DS(72)

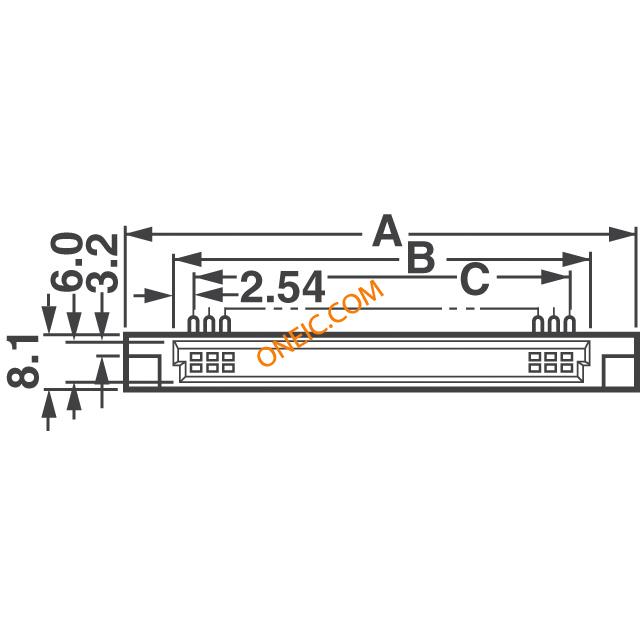

PCN10C-50S-2.54DS(72)图片
  1. PCN10C-50S-2.54DS(72)
  2. PCN10C-50S-2.54DS(72)
  3. PCN10C-50S-2.54DS(72)
  4. PCN10C-50S-2.54DS(72)

图片仅供参考,产品以实物为准

厂商型号

PCN10C-50S-2.54DS(72)

产品描述

DIN 41612 Connectors DIN RCPT 50P DUAL R/A

内部编号

156-PCN10C-50S-2-54DS-72

生产厂商

Hirose Connector

hirose

#1

 数量:82
1+¥47.6885
10+¥45.7136
25+¥41.7398
50+¥39.751
100+¥37.7634
250+¥33.7883
500+¥31.8008
1000+¥27.8257
最小起订量:1
美国费城
当天发货，5-8个工作日送达.
立即询价

#2

 数量:117
1+¥51.3511
10+¥49.1631
25+¥42.804
100+¥40.6159
250+¥36.3766
500+¥34.1885
1000+¥29.9491
2500+¥28.4448
最小起订量:1
美国加州
当天发货，1-3个工作日送达.
立即询价

订购说明

质量保障

原厂背书质量,全面技术支持

全场免邮
全场免运费 /报价不含任何销售税
支付方式

PCN10C-50S-2.54DS(72)产品详细规格

规格书 PCN10C-50S-2.54DS(72) datasheet 规格书
PCN10, 12, 13 Series
Rohs Lead free / RoHS Compliant
标准包装 11
Connector 型 Receptacle, Female Sockets
位置数 50
加载的触点数 All
球场 0.100 (2.54mm)
行数 2
风格 B
Level, 类 -
安装类型 Through Hole, Right Angle
终止 Solder
特点 -
触点表面涂层 Gold
触点涂层厚度 -
包装材料 Tray
操作温度 -55°C ~ 85°C
额定电流 2A
材料可燃性等级 UL94 V-0
材料 - 绝缘 Polybutylene Terephthalate (PBT)
间距 0.100" (2.54mm)
风格 B
额定电流 2A
安装类型 Through Hole, Right Angle
材料阻燃等级 UL94 V-0
连接器类型 Receptacle, Female Sockets
触点表面涂层 Gold
封装 Tray
材料 - 绝缘体 Polybutylene Terephthalate (PBT)
行数 2
标准包装 11
端子 Solder
工作温度 -55°C ~ 85°C
Contact Finish Thickness 8µin (0.20µm)
位置数 50
加载位置的数目 All
工厂包装数量 1
安装方式 Right
额定电压 300 V
系列 PCN10
端接类型 Through Hole
外壳材料 Polybutylene Terephthalate (PBT)
位置/触点数 50
触点电镀 Gold
产品类型 Receptacles
类型 B
RoHS RoHS Compliant
触点材料 Copper Alloy
mating PCN10-50P-2.54DS(72)
PCN10-50P-2.54DS
PCN10-50P-2.54DSA
PCN10-50P-2.54DSA(72)

PCN10C-50S-2.54DS(72)系列产品

型号厂家产品描述
PCN10C-50S-2.54DS Hirose Electric Co Ltd DIN CONN RCPT 50 POS 2 ROW R ANG
PCN10C-50S-2.54DSA Hirose Electric Co Ltd DIN CONN RCPT 50 POS 2 ROW STR
PCN10C-50S-2.54DSA(72) Hirose Connector DIN 41612 コネクタ DIN 41612 RCP 50 POS 2.54mm Solder ST Th
PCN10C-100S-2.54DS Hirose Electric Co Ltd DIN CONN RCPT 100 POS 2 ROW R AN
PCN10C-100S-2.54DS(72) Hirose Connector DIN 41612 Connectors DIN RCPT 100P DUAL R/A
PCN10C-100S-2.54DSA Hirose Electric Co Ltd DIN CONN RCPT 100 POS 2 ROW STR
PCN10C-100S-2.54DSA(72) Hirose Connector DIN 41612 Connectors DIN REC 100P DUAL STR
PCN10C-100S-2.54WA(72) Hirose Connector DIN 41612 Connectors 100P WRP RECP HDR TH PCN 10 SERIES
PCN10C-16S-2.54DSA(72) Hirose Connector DIN 41612 コネクタ 16P STRT RECEPT T/H FLUX PREVENTION TYPE
PCN10C-16S-2.54DSA(77) Hirose Connector DIN 41612 Connectors 16P STRT RECEPTACLE 2.54MM PITCH
PCN10C-200S-2.54DSA(72) Hirose Connector DIN 41612 Connectors 2.54MM 200P RECPT STRT THRUHOLE
PCN10C-20S-2.54DS Hirose Electric Co Ltd DIN CONN RCPT 20 POS 2 ROW R ANG
PCN10C-20S-2.54DS(72) Hirose Connector DIN 41612 Connectors DIN RCPT 20P DUAL R/A
PCN10C-20S-2.54DSA Hirose Electric Co Ltd DIN CONN RCPT 20 POS 2 ROW STR
PCN10C-20S-2.54DSA(72) Hirose Connector DIN 41612 Connectors DIN REC 20P DUAL STR
PCN10C-20S-2.54DSA(75) Hirose Connector DIN 41612 Connectors 20P STRT RECEPT T/H FLUX PREVENTION TYPE
PCN10C-20S-2.54DSA(77) Hirose Connector DIN 41612 コネクタ 20P STRT RECEPTACLE 2.54MM PITCH
PCN10C-20S-2.54DSA(86) Hirose Connector DIN 41612 Connectors 20P STRT RECEPT T/H FLUX PREVENTION TYPE
PCN10C-20S-2.54DSA(92) Hirose Connector DIN 41612 Connectors 20P STRT RECEPT T/H FLUX PREVENTION TYPE
PCN10C-20S-2.54WB(72) Hirose Connector DIN 41612 Connectors 20P WRP RECP HDR TH PCN 10 SERIES
