Hammond Manufacturing
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 面积（长x宽） | 43.3" (279cm) |
| 产品特点 | Card Guides, Flame Retardant, PCB Supports |
| 重量 | 0.753 lb (341.56g) |
| 颜色 | Black |
| 标准包装 | 1 |
| 材质 | Plastic, ABS |
| 身高 | 2.972" (75.50mm) |

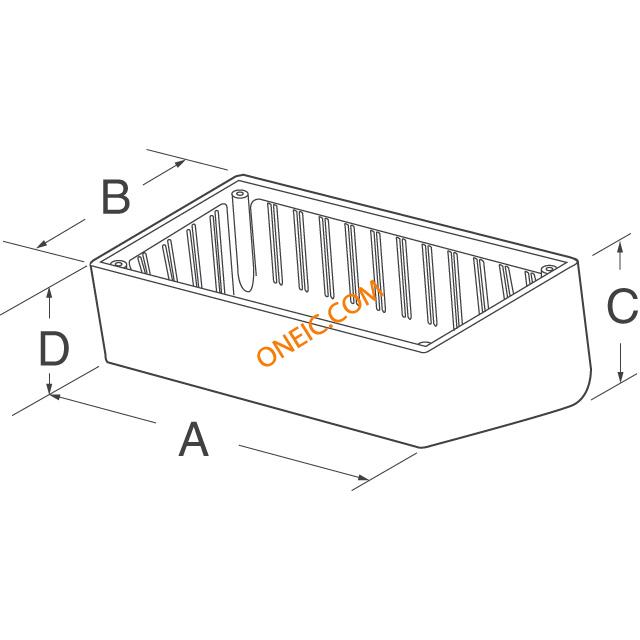

| 尺寸/尺寸 | 8.465" L x 5.118" W (215.01mm x 130.00mm) |
| 集装箱类型 | Box |
| 设计 | Slanted Top |
| 材料阻燃等级 | UL94 V-0 |
| 厚度 | 0.079" (2.01mm) |
| 其他名称 | HM244 |
| 装运信息 | Shipped from Digi-Key |
| RoHS指令 | Compliant |
| 外宽 | 5.12 in |
| 外部高度 | 2.95 in |
| 产品 | Electronics Enclosures |
| 产品种类 | Enclosures, Boxes, & Cases |
| 可燃性等级 | UL 94 V-0 |
| 类型 | Sloped Console, Flame Retardant |
| RoHS | RoHS Compliant |
| 外部深度 | 8.47 in |
| 外壳类型 | :Instrument |
| 外壳材质 | :Acrylonitrile Butadiene Styrene (ABS) |
| 主体颜色 | :Black |
| External Height - Imperial | :2.95" |
| External Height - Metric | :75mm |
| External Width - Imperial | :5.12" |
| External Width - Metric | :130mm |
| External Depth - Imperial | :8.46" |
| External Depth - Metric | :215mm |
| IP等级 | :- |
| NEMA号 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.351 |
| Tariff No. | 39269097 |
| 机身颜色 | :Black |
| Brand/Series | 1595Series |
| 配置 | Desktop |
| 外形尺寸 | 8.470x5.120x2.960In. |
| 长度 | 8.47in. |
| Material,Base | ABSPlastic |
| ScrewSize | M3x0.5in. |
| 宽度 | 5.12in. |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
