Hammond Manufacturing

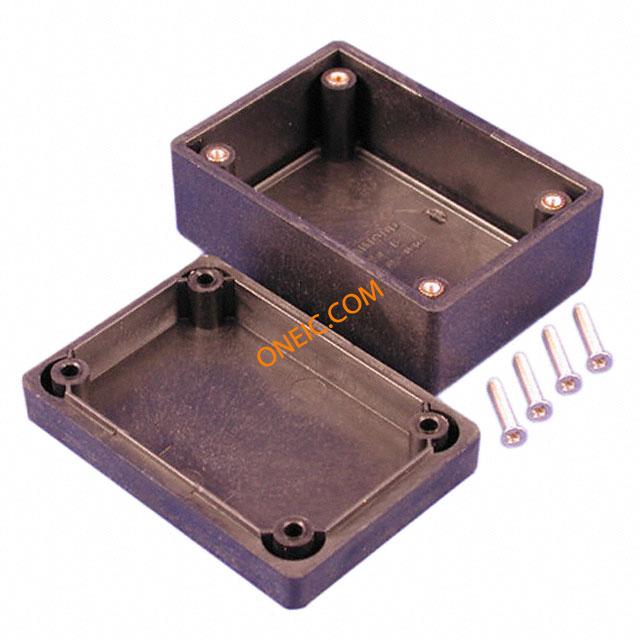

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | IP54 |
| 面积（长x宽） | 7.03" (45.4cm) |
| 产品特点 | EMI Shielded, Flame Retardant |
| 重量 | 0.5 lb (226.8g) |
| 颜色 | Black |
| 标准包装 | 1 |
| 材质 | Plastic, ABS |
| 身高 | 1.578" (40.08mm) |
| 尺寸/尺寸 | 3.189" L x 2.205" W (81.00mm x 56.00mm) |
| 集装箱类型 | Box |
| 设计 | Cover Included |
| 材料阻燃等级 | UL94 V-0 |
| 厚度 | 0.130" (3.30mm) |
| 装运信息 | Shipped from Digi-Key |
| 阀体材质 | ABS |
| 颜色 | Black |
| 外部尺寸 | 81 x 56 x 40mm |
| 外部高度 | 40 mm |
| 外部长度 | 81 mm |
| 外宽 | 56 mm |
| IP等级 | IP54 |
| RoHS指令 | Not Applicable |
| 外宽 | 2.17 in |
| 外部高度 | 1.1 in |
| 产品 | Electronics Enclosures |
| 产品种类 | Enclosures, Boxes, & Cases |
| 可燃性等级 | UL 94 HV |
| 类型 | Heavy Duty |
| RoHS | RoHS Compliant |
| 外部深度 | 3.15 in |
| 外壳类型 | :Instrument |
| 外壳材质 | :Plastic |
| 主体颜色 | :Black |
| External Height - Imperial | :3.19" |
| External Height - Metric | :81mm |
| External Width - Imperial | :2.2" |
| External Width - Metric | :56mm |
| External Depth - Imperial | :1.57" |
| External Depth - Metric | :40mm |
| NEMA号 | :12K |
| SVHC | :No SVHC (20-Jun-2013) |
| IP / NEMA Rating | :IP54 |
| Internal Depth - Metric | :21.97mm |
| Internal Height - Metric | :74.65mm |
| Internal Width - Metric | :49.86mm |
| Lid Depth | :12.47mm |
| Weight (kg) | 0.1 |
| Tariff No. | 85381000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
