Hammond Manufacturing
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | IP54 |
| 面积（长x宽） | 4.86" (31.4cm) |
| 重量 | 0.109 lb (49.44g) |
| 颜色 | Gray |
| 标准包装 | 1 |
| 材质 | Plastic, ABS |
| 身高 | 1.578" (40.08mm) |
| 尺寸/尺寸 | 2.205" L x 2.205" W (56.00mm x 56.00mm) |
| 集装箱类型 | Box |
| 设计 | Cover Included |
| 厚度 | 0.130" (3.30mm) |
| 其他名称 | HM221 |
| 装运信息 | Shipped from Digi-Key |
| 阀体材质 | PS |
| 颜色 | Grey |
| 外部尺寸 | 56 x 56 x 40mm |
| 外部高度 | 40 mm |
| 外部长度 | 56 mm |
| 外宽 | 56 mm |
| IP等级 | IP54 |
| 击倒数 | 0 |
| RoHS指令 | Compliant |
| 外宽 | 2.2 in |
| 外部高度 | 1.1 in |
| 产品 | Instrument Cases |
| 产品种类 | Enclosures, Boxes, & Cases |
| 产品特点 | Design For PCB Mounting, Designed To Meet IP54, Watertight Version Meets IP65 |
| RoHS | RoHS Compliant |
| 外部深度 | 2.2 in |
| 外壳类型 | :Instrument |
| 外壳材质 | :Acrylonitrile Butadiene Styrene (ABS) |
| 主体颜色 | :Grey |
| External Height - Imperial | :1.57" |
| External Height - Metric | :40mm |
| External Width - Imperial | :2.2" |
| External Width - Metric | :56mm |
| External Depth - Imperial | :2.2" |
| External Depth - Metric | :56mm |
| NEMA号 | :12K |
| SVHC | :No SVHC (20-Jun-2013) |
| IP / NEMA Rating | :IP54 |
| Weight (kg) | 0.05 |
| Tariff No. | 39269097 |
| Brand/Series | 1594Series |
| 配置 | Desktop |
| Depth,Lid | 0.47in. |
| 外形尺寸 | 2.200x2.200x1.570In. |
| 表面处理 | MatteTextured |
| IPRating | IP54 |
| Material,Body | PolystyrenePlastic |
| ScrewType | Self-Tapping |
| 类型 | Box-Lid |
| Body colour | grey |
| Dimension Z | 40mm |
| Dimension Y | 56mm |
| Dimension X | 56mm |
| Multiplicity | 1 |
| Enclosure material | polystyrene |
| Gross weight | 0.05 kg |

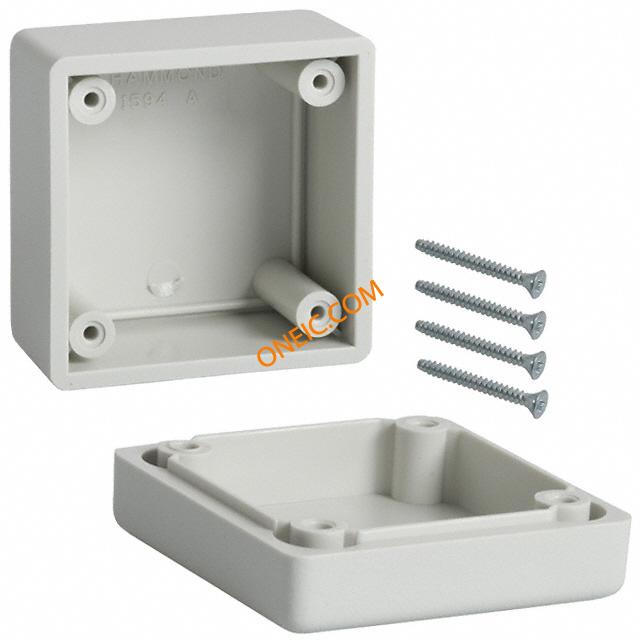

| Kit contents | 4 screws |
| Wall thickness | 3.3mm |
| 密封 | IP54 |
| Enclosure series | 1594 |
| 机箱类型 | multipurpose |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
