Hammond Manufacturing
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 面积（长x宽） | 11.5" (74cm) |
| 产品特点 | Battery Door, PCB Supports |
| 重量 | 0.156 lb (70.76g) |
| 颜色 | Black |
| 标准包装 | 1 |
| 材质 | Plastic, ABS |
| 身高 | 1.102" (27.99mm) |
| 尺寸/尺寸 | 4.409" L x 2.618" W (111.99mm x 66.50mm) |
| 集装箱类型 | Box |
| 设计 | Hand Held, End Panel and Cover |
| 材料阻燃等级 | UL94 HB |
| 其他名称 | HM359 |
| 装运信息 | Shipped from Digi-Key |
| 阀体材质 | ABS |
| 颜色 | Black |
| 外部尺寸 | 112 x 66 x 28mm |
| 外部高度 | 28 mm |
| 外部长度 | 112 mm |
| 外宽 | 66 mm |
| RoHS指令 | Compliant |
| 外宽 | 2.6 in |
| 外部高度 | 1.1 in |
| 产品 | Instrument Cases |
| 产品种类 | Enclosures, Boxes, & Cases |
| 可燃性等级 | UL 94 HB |
| 类型 | Hand Held |
| RoHS | RoHS Compliant |
| 外部深度 | 4.4 in |
| 外壳类型 | :Handheld |
| 外壳材质 | :Acrylonitrile Butadiene Styrene (ABS) |
| 主体颜色 | :Black |
| External Height - Imperial | :4.41" |
| External Height - Metric | :112mm |
| External Width - Imperial | :2.6" |
| External Width - Metric | :66mm |
| External Depth - Imperial | :1.1" |
| External Depth - Metric | :28mm |
| IP等级 | :- |
| NEMA号 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.068 |
| Tariff No. | 39231000 |
| Brand/Series | 1593Series |
| 配置 | Handheld |
| 外形尺寸 | 4.400x2.600x1.100In. |
| 表面处理 | Black |
| ForUseWith | SuitedforMountingprintedcircuitboards |
| 长度 | 4.4in. |
| Material,Body | ABSPlastic |
| ScrewType | SelfTappingScrew |
| 宽度 | 2.6in. |
| Dimension Z | 28mm |
| Dimension Y | 112mm |
| Dimension X | 66mm |
| Multiplicity | 1 |
| spg | 10 |
| Gross weight | 0.07 kg |
| Body colour | black |
| 机箱类型 | multipurpose |
| Enclosure series | 1593 |
| Collective package [pcs] | 10 |
| Enclosure material | ABS |

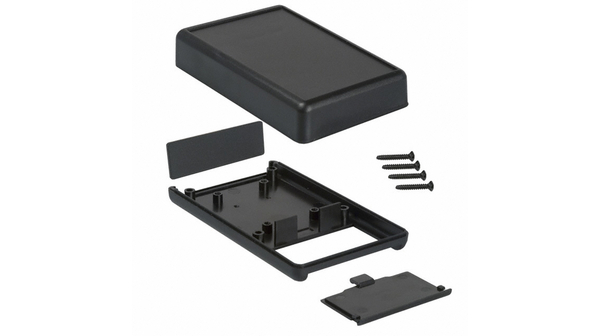

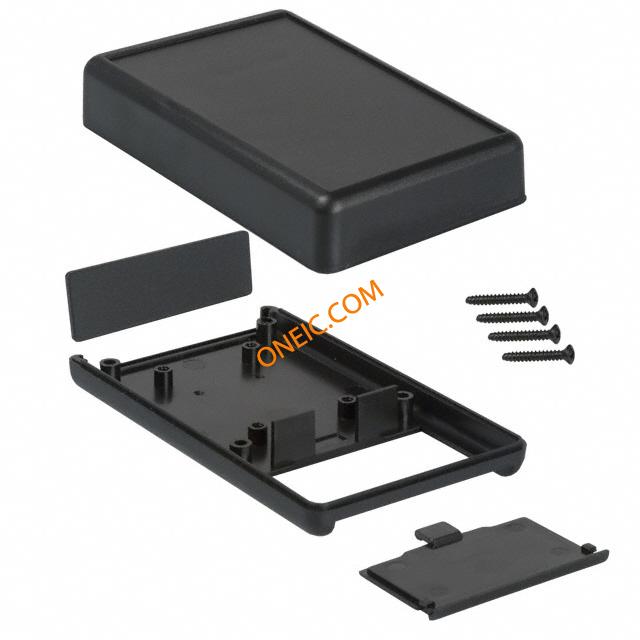

| Enclosure description | battery compartment cover, removable panels enable easy enclosure modification like IR filter mounting (available to special order) or connectors mounting |
