Hammond Manufacturing

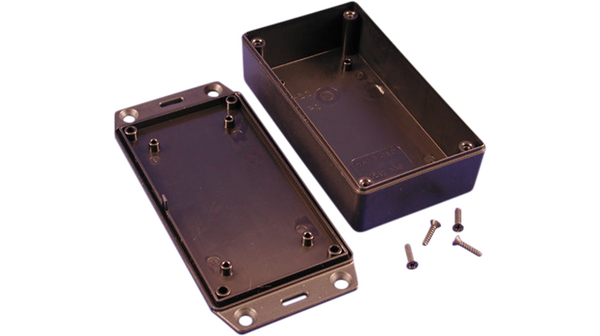

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | IP54 |
| 面积（长x宽） | 11.2" (72cm) |
| 产品特点 | PCB Supports |
| 重量 | 0.13 lb (58.97g) |
| 颜色 | Black |
| 标准包装 | 1 |
| 材质 | Plastic, Non Specified |
| 身高 | 1.289" (32.74mm) |
| 尺寸/尺寸 | 4.481" L x 2.493" W (113.82mm x 63.32mm) |
| 集装箱类型 | Box with Mounting Flange |
| 设计 | Cover Included |
| 厚度 | 0.079" (2.01mm) |
| 装运信息 | Shipped from Digi-Key |
| RoHS指令 | Compliant |
| 外宽 | 2.5 in |
| 外部高度 | 1.1 in |
| 产品 | Electronics Enclosures |
| 产品种类 | Enclosures, Boxes, & Cases |
| IP等级 | IP 54 |
| 可燃性等级 | UL 94 V-0 |
| RoHS | RoHS Compliant |
| 外部深度 | 4.4 in |
| 外壳类型 | :Multipurpose |
| 外壳材质 | :Acrylonitrile Butadiene Styrene (ABS) |
| 主体颜色 | :Black |
| External Height - Imperial | :1.112" |
| External Height - Metric | :28.25mm |
| External Width - Imperial | :2.493" |
| External Width - Metric | :63.32mm |
| External Depth - Imperial | :4.481" |
| External Depth - Metric | :113.82mm |
| NEMA号 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.13 |
| Tariff No. | 39269097 |
| Brand/Series | 1591XXSSeries |
| 配置 | PanelMount |
| 外形尺寸 | 4.400x2.500x1.100In. |
| IPRating | IP54 |
| SpecialFeatures | FlangedLid |
| 类型 | Flanged |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
